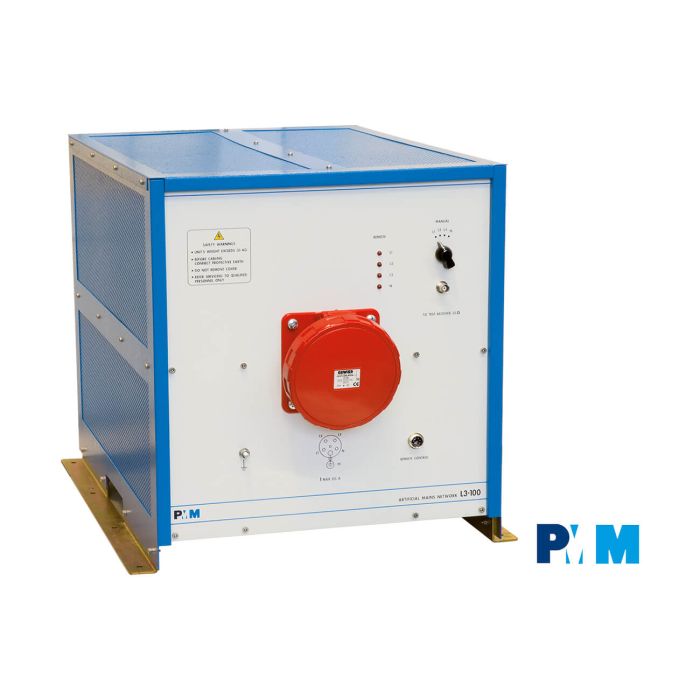

L3-100 100 A
L3-100
Narda Safety Test Solutions
Three-Phase Plus Neutral 9 kHz – 30 MHz
The L3-100 tackles radio frequency interference (RFI) in 3-phase AC powered equipment, handling up to 100 amps.
This three-line V-network measures conducted interference from 9 kHz to 30 MHz.
Struggling with radio frequency interference (RFI) in your 3-phase AC powered equipment? The L3-100 measurement instrument is here to help. This compact and affordable solution tackles RFI issues in equipment handling up to 100 amps, making it ideal for a wide range of applications.
Designed with both affordability and ease of use in mind, the L3-100 integrates seamlessly with most RF receivers. It even boasts remote connection capabilities for PMM-Narda receivers, offering increased flexibility for your testing environment
The L3-100 is fully compliant to:
- CISPR 16-1-2
- VDE 0876
- FCC part 15
- MIL-STD 461F
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 30 MHz |
| Maximum Operating Voltage |
(L/PE) (N/PE):230 Vac; 325 Vdc |
| Operating Temperature | -10 °C to +40 °C |
| Dimensions | 465 x 450 x 740 mm |
| Weight | 70kg |
| Overload Current | 125 A for 5 minutes |
| Continuous Rated Output Current | 100 A continuous |
| Equivalent Circuit | 50 Ω // [5 Ω + 50 μH] with 250 μH choke |
| RF Output Connector | BNC female |
| EUT Connection | 125 A plug and socket outlet according to IEC309 standard |
| Storage Temperature | -25°C to 75°C |
| Input Mains Frequency Range | DC to 60 Hz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
