LR8101 / LR8102

LR8101 / LR8102

Hioki

Data Logger

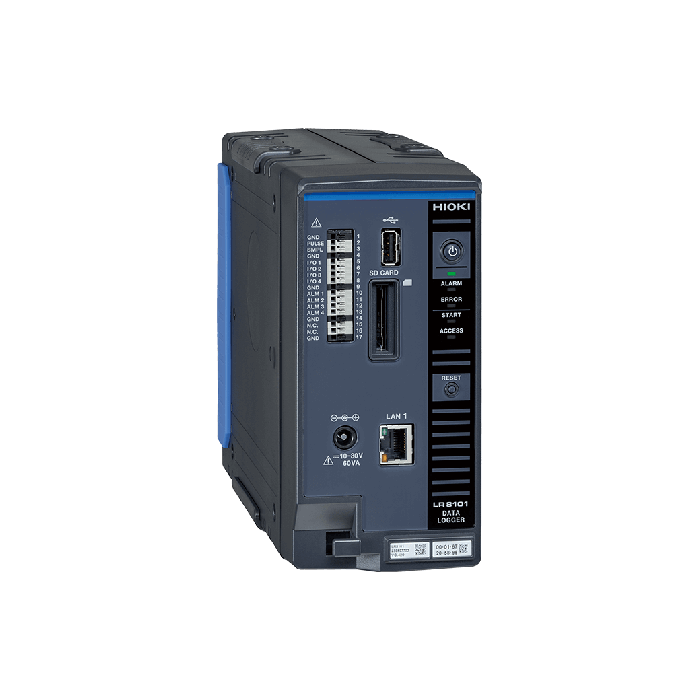

main product photo

Introducing a Modular Data Logger - Engineered for Use in Embedded Applications

Measurement systems are being called upon to deliver sophisticated capabilities as efficient energy use and e-mobility technologies progress.

Hioki data loggers drive solutions that turn measurement system issues into advantages, for example by assuring the safety of high-voltage systems, accommodating enormous numbers of measurement channels, and realizing data compatibility with upstream systems.

Key Features

  • Add measurement modules as needed to create the measurement system you need
  • [LR8102] Add channels by synchronizing sampling across multiple loggers
  • [LR8102] Transfer high-speed data in real time
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Power Supply

AC adapter: AC Adapter Z1016 (operates on 12 V DC ±10%)
External power supply: 10 V DC to 30 V DC
AC Power Module M1100: Always required when using the Power Measurement Module M7103.
Included Accessories Operating Precautions ×1, Startup Guide ×1, DVD ×1 (Startup Guide, Instruction Manual, Logger Utility, Logger Utility Instruction Manual, CAN Editor, CAN Editor Instruction Manual, Communication Command Instruction Manual)
Dimensions and Weight

No module:
Approx. 80W × 166H × 238D mm (3.1W × 6.5H × 9.4D in.) (excluding protruding parts), Approx. 1.5 kg (3.3 lbs)

With one M7100 installed:
Approx. 134W × 166H × 263D mm (5.3W × 6.5H × 10.4D in.) (excluding protruding parts)

With ten M7100 installed:
Approx. 620W × 166H × 263D mm (24.4W × 6.5H × 10.4D in.) (excluding protruding parts)
Maximum Number Of Module Connections

LR8102: 10
LR8101: 10
Maximum Number Of Synchronizable Loggers

LR8102: 10 (Requires optical connection cables)
LR8101: N/A
Operating Temperature And Humidity Range −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing)
Number of LAN Ports

LR8102: 2
LR8101: 1
Communication Interface

LR8102: [LAN1 functionality]
Collecting data and setting recording conditions using Logger Utility
Setting the initial IP address using Logger Utility
Setting and controlling recording using communication commands
Manually acquiring data using an FTP Server
Automatically sending data via FTP (FTP client)
HTTP server function
XCP on Ethernet (TCP)
NTP client function

[LAN2 functionality]
XCP on Ethernet (UDP)
Measurement data can be output by UDP

LR8101: [LAN1 functionality]
Collecting data and setting recording conditions using Logger Utility
Setting the initial IP address using Logger Utility
Setting and controlling recording using communication commands
Manually acquiring data using an FTP Server
Automatically sending data via FTP (FTP client)
HTTP server function
XCP on Ethernet (TCP)
NTP client function
External Media

USB Drive, Operation guaranteed: Z4006 (16 GB)
SD memory card/SDHC memory card supported, Operation guaranteed: Z4001 (2 GB), Z4003 (8 GB)
External Control Terminal

LR8102: Pulse/logic input (1), External sampling input (1), External input and output (4), Alarm output (4), GND terminal (5), CAN interface (1)

LR8101: Pulse/logic input (1), External sampling input (1), External input and output (4), Alarm output (4), GND terminal (5)
