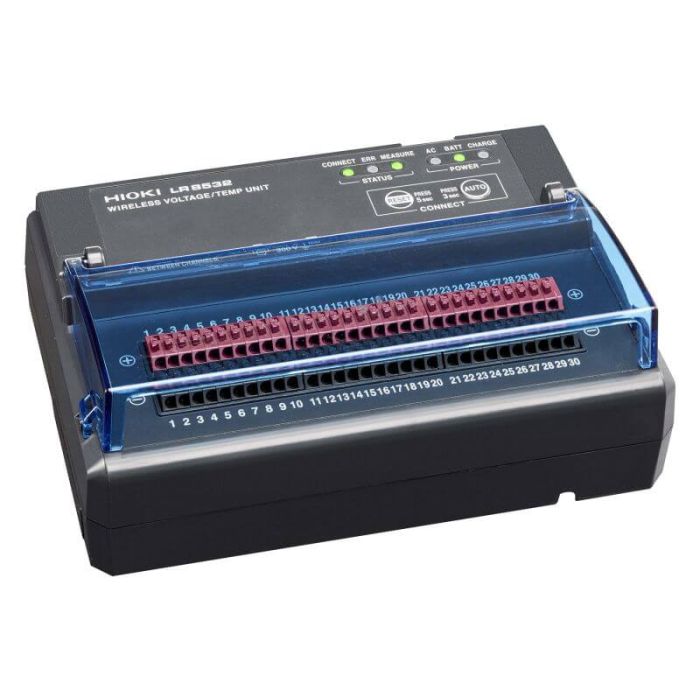

30 channels, voltage and temperature (thermocouples) measurement
Wireless connection between LR8450-01 and measurement module, 30 m range
Sampling rate of up to 20 ms with 30 channels (10 ms sampling is possible when the number of channels used is 15 or less).
For DC voltage measurement and temperature measurement using thermocouples.
Basic Specifications
Connectable instrument
Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications
method
Connect wirelessly via Wireless LAN Adapter Z3230 (included)
Wireless LAN (IEEE 802.11b/g/n)
Communication range: 30 m (line of sight)
Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES
Available number of channels: 1 to 11
Communications buffer
memory
4 M word (volatile memory)
Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature
and humidity
-20°C to 55°C, 80% RH (no condensation)
(Charging temperature range: 5°C to 35°C)
Storage temperature
and humidity
-20°C to 60°C, 80% RH (no condensation)
Vibration resistance
JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display
Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function
Available
Accessories
Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate)
Number of input
channels
30 ch (Able to set voltage or temperature using the thermocouple for each channel)
Input terminals
Push-button type terminal block (2 terminals per channel)
Measurement
target
Voltage, temperature using the thermocouple
Input type
Scanning by semiconductor relays
All channels isolated
