SP7001-90

Hioki

Non-Contact Can FD/Can Sensor, Consists Of SP7001, SP7100, SP9200

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

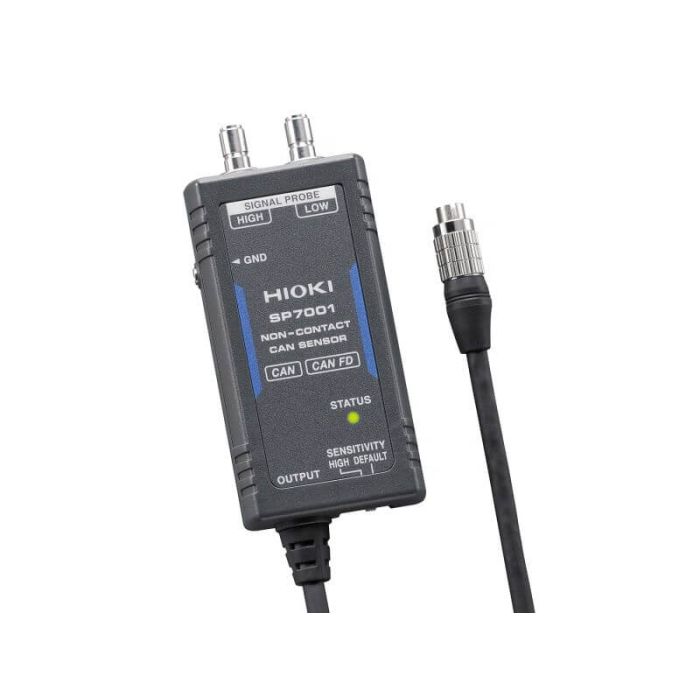

Non-Contact CAN FD/CAN Sensor

Key Features

Measurement Method: Non-contact, capacitive coupling
Supported Protocols: CAN, CAN FD
Communication Speed: 125 kbit/s to 3 Mbit/s (CAN FD)
Operating Temperature Range: -40°C to 85°C
Maximum Rated Voltage: 300 V AC/DC (terminal-to-ground)
Power Supply: External power supply (10 V to 30 V DC) or Z1008 AC Adapter
Dimensions: 44 mm (W) × 85 mm (H) × 20 mm (D)
Weight: Approx. 180 g
Output Connector: D-sub 9-pin female

The SP7001-90 Non-Contact CAN Sensor allows for safe, efficient data acquisition from CAN and CAN FD networks without modifying or damaging the wiring. Designed for automotive development, the SP7001-90 simplifies capturing CAN signals, even in tight spaces, by clipping directly onto the CAN bus cables.

This innovative sensor features a capacitive coupling method, ensuring that the CAN bus's electrical characteristics remain unaffected, which is crucial for secure testing and real-time monitoring of vehicle systems. It supports communication speeds up to 3 Mbit/s, making it ideal for advanced driver assistance systems (ADAS) and autonomous driving applications.
