LS2003G-G2
LS2003G-G2
LOCOSYS Technology
A complete standalone GNSS smart antenna module, including embedded patch antenna and GNSS receiver circuit

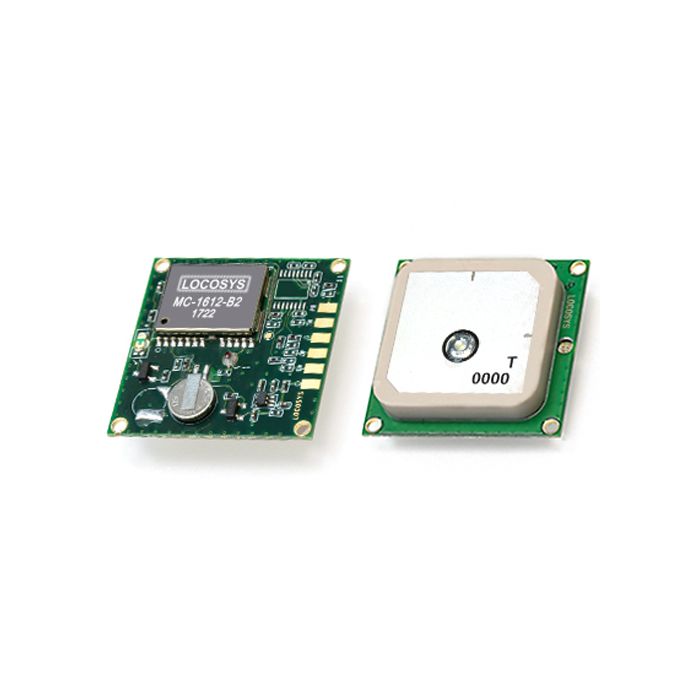

The LOCOSYS LS2003G-G2 is complete standalone GNSS smart antenna module that includes an embedded antenna and GNSS receiver circuits. It is designed for a broad spectrum of OEM system applications.
The LS2003G-G is based on the proven technology found in LOCOSYS GNSS SMD type receiver (MC-1612-G2) that uses a MediaTek chip solution. It can simultaneously acquire and track multiple satellite constellations that include:
- GPS
- GLONASS
- GALILEO
- QZSS
- SBAS
The LS2003G-G2 provides superior sensitivity and performance in urban areas and dense foliage environments. Its far-reaching capability meets the sensitivity requirements of car navigation and other location-based applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Power (mA) | 25mA / 30mA |
| Antenna Size | 25 x 25 x 4mm |
| Connection | Hand-Soldering Pad |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART / RS232 |
| Memory | Flash |
| Dimensions | 30 x 30 x 8mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
