M4252
M4252
Enercon Technologies Europe

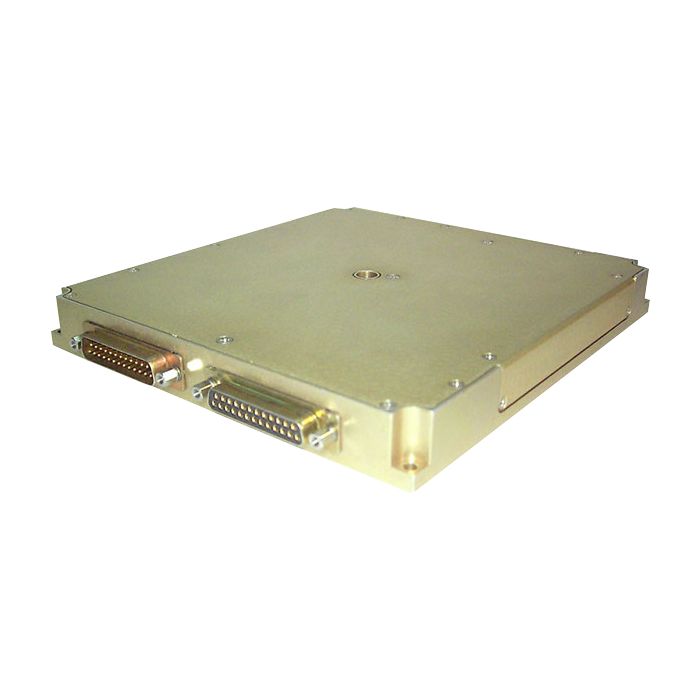

M4252 Series DC-AC Inverters
The M4252 Series is a ruggedised military grade DC/AC Inverter with an input voltage range of 18-70VDC and one output with an output power rating up to 350VA | 50/60/400Hz. Designed for a variety of applications including: Military (Airborne, ground mobile, shipboard), Telecom and Industrial Power Supply. Custom outputs are available upon request.
Designed to meet the following standards:
- MIL-STD-810
- MIL-STD-461
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Inverter) |
| Standards |
|
| Output Power | 350VA | 50/60/400Hz |
| Fixed Switching Frequency | 250kHz |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 18-70VDC |
| Operating Temperature | -40°C to 85°C |
| Outputs | Single Output |
| Dimensions | 177.8 x 165.1 x 21.59 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
