M6242
M6242
Enercon Technologies Europe

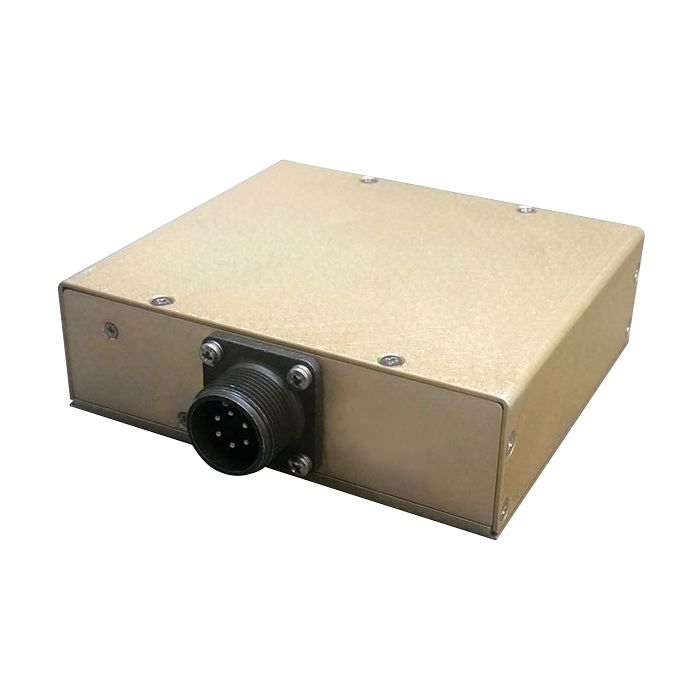

M6242 Series DC-AC Inverters
The M6242 Series is a ruggedised military grade DC/AC Inverter with an input voltage range of 18-36VDC and one output with an output power rating up to 100VA | 400Hz. Designed for a variety of applications including: Military (Airborne, ground mobile, shipboard), Telecom and Industrial Power Supply. Custom outputs are available upon request.
Designed to meet the following standards:
- MIL-STD-810
- MIL-STD-461
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Inverter) |
| Standards |
|
| Output Power | 100VA | 400Hz |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 18-36VDC |
| Operating Temperature | -55°C to 90°C |
| Outputs | Single Output |
| Dimensions | 106.68 x 116.84 x 35.56 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
