MC-1010-18Q
MC-1010-18Q
LOCOSYS Technology
High-performance GNSS positioning module that is capable of tracking all global civil navigation systems

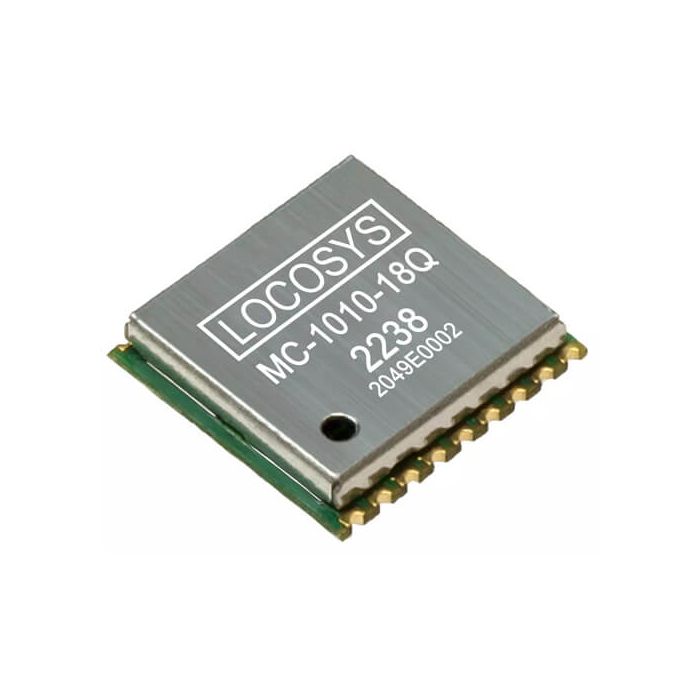

The LOCOSYS MC-1010-18Q is a high-performance GNSS positioning module that is capable of tracking all global civil navigation systems. It supports new GPS L1C and BEIDOU B1C signals. Besides, it integrates efficient power management architecture to perform low power and high sensitivity.
These modules support hybrid ephemeris prediction to achieve a fast cold start. A self-generated ephemeris prediction (called EASY) requires no network assistance or host CPU intervention. This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. A server-generated ephemeris prediction (called EPO) is obtained from an internet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time of fewer than 15 seconds.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 1.71V - 1.89V |
| Module Type | GNSS Module |
| Satellite Systems | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Operating Temperature | -40 ~ 85°C |
| Interface |
|
| Dimensions | 10.1 x 9.7 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
