MC-1513
MC-1513
LOCOSYS Technology
GPS module featuring high sensitivity, low power and an ultra small form factor.

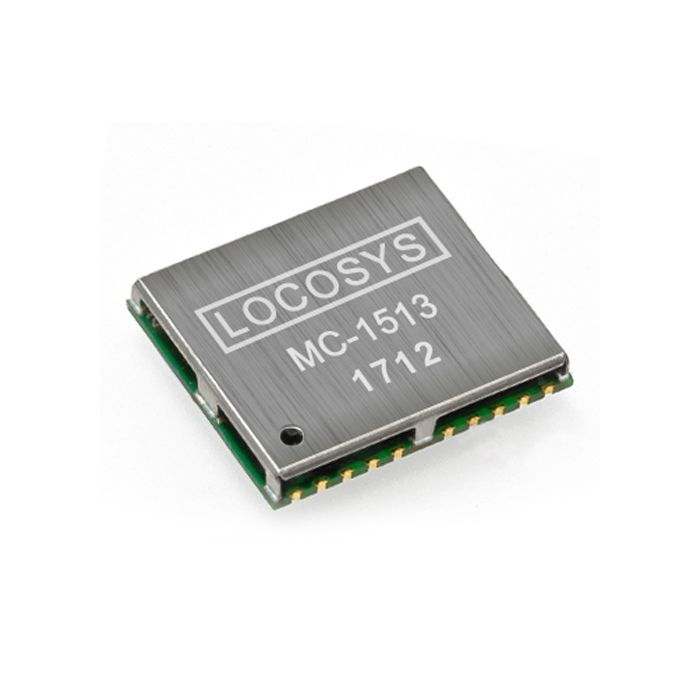

LOCOSYS MC-1513 GPS module features high sensitivity, low power and ultra small form factor. This GPS module's functionality is using MediaTek All-in-One GPS chip, MT3339, and it provides you with superior sensitivity and performance even in urban canyon and dense foliage environment. The miniature size makes the module easy and the best choice to integrate into portable device like mobile phone, PDAs, camera and vehicle locators.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 4.3V |
| Module Type | GPS Module |
| Satellite Systems | GPS, QZSS |
| Power (mA) | 12mA |
| VB (uA) | 6uA |
| Operating Temperature | -40 ~ 85°C |
| Interface |
|
| Dimensions | 15 x 13 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
