Advantech

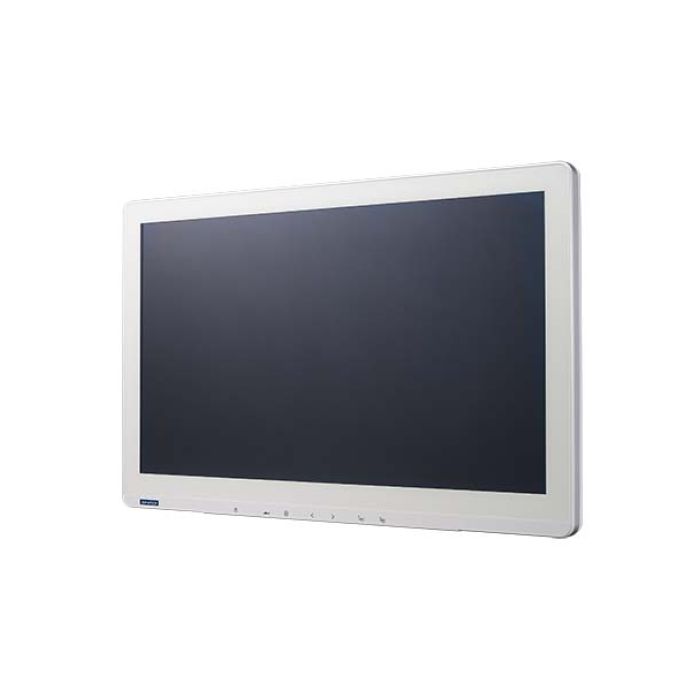

24" Medical-grade Surgical Monitor

Designed to deliver medical images of optimal quality, the PAX-324 monitor supports a Full HD resolution of 1920x1200 @ 60 Hz. Equipped with DICOM Part 14 GSDF compliance 14-bit LUT processing grayscale, hardware calibration support, and automatic charge input detection, the PAX-324 surgical monitor ensures precise representation of grayscale images and its slim true-flat design also offers physical onscreen display keys, a splash screen and an optional touchscreen with projective capacitive control, and can be upgraded into an IP-based monitor.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Multi-standard video support (NTSC, PAL, SECAM)
  • SDI support up to 1920 x 1080 @ 60Hz
  • HDMI 2.0, DP 1.2, DVI, RGB support up to 1920 x 1200 @ 60 Hz
  • FHD resolution (1920 x 1200)
  • High brightness display with a high contrast ratio
  • 24” true-flat monitor with AR filter
Warranty 3 years
Response Time 14ms
Touchscreen Optional 10-point PCAP
Display Max Resolution 1920 x 1200
Display Luminance 350 - 900 cd/m2
Contrast Ratio 1000:1
Mounting VESA 100 x 100 mm and 75 x 75 mm
HDMI 1
Display port 1
Certifications CE MDR (EN60601-1; EN60601-1-2), RoHS ll
USB 1
Water resistance Front IP65
Top IPX1
DVI 2
Audio Out 1 (optional)
Operating Temperature 0 - 40° C
Display Type 24.07" (518.4 x 324.0 mm) (16:9)
Dimensions 578.13 x 68 x 402.78 mm
Power Supply DC 24 V, 4.16 A max
More Information
Attribute Value
Data Sheet Click here to view
