PAX-327
PAX-327
Advantech

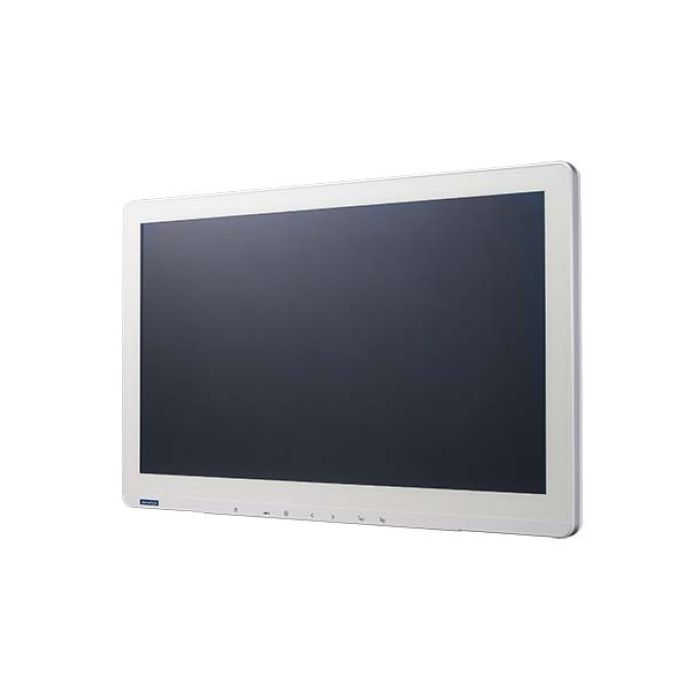

27" true flat Surgical-grade full HD and UHD Monitor
Designed to enable both Radiology and Optical imaging simultaneously into Multi-Views. Delivering medical images of optimal quality, the PAX-327 monitor supports Full HD and UHD resolution. Featuring the Rec. 709 Color Space, true RGB and DICOM Part 14 GSDF compliance, 14-bit LUT processing grayscale, hardware calibration support, and automatic input source detection, PAX-327 ensures precise representation of grayscale images.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 663.83 x 73.55 x 418.11 mm |
| Response Time | 14ms |
| Touchscreen | Optional 10-point PCAP |
| Display Max Resolution | 1920 x 1080 |
| Display Luminance | 300 - 1000 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDMI | 1 |
| Display port | 1 |
| Certifications | CE MDR (EN60601-1; EN60601-1-2), RoHS ll |
| USB | 1 |
| Water resistance |
Front IP65 Top IPX1 |
| DVI | 2 |
| Audio Out | 1 (optional) |
| Operating Temperature | 0 - 40° C |
| Display Type | 27" (579.88 x 336.31 mm) (16:9) |
| Power Supply | DC 24 V, 4.16 A max |
| Warranty | 3 years |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
