PDC-W210
PDC-W210
Advantech
21.5" Clinical Display

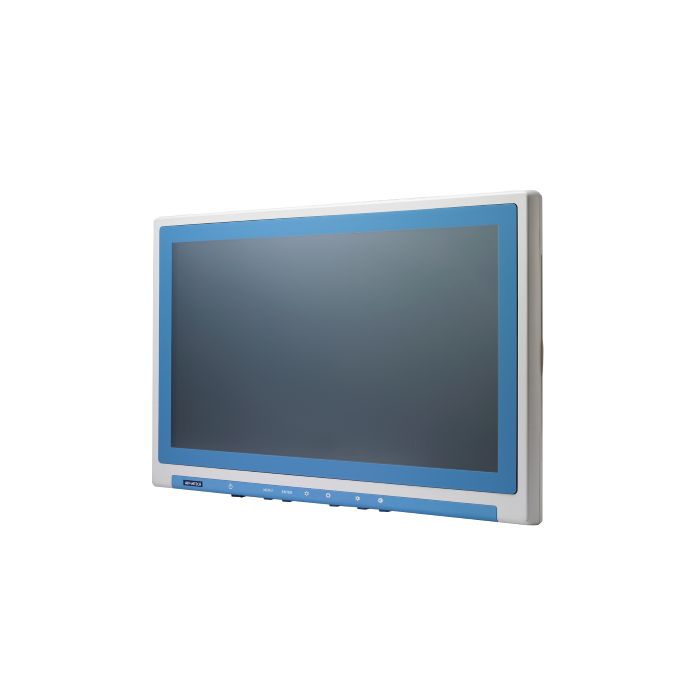

Advantech’s PDC-WP210 is a 21.5" medical display designed for use in critical hospital environments, such as operating rooms and intensive care units. Featuring a high contrast ratio, wide viewing angle, and gloved operation responsiveness, the IPS display monitor provides care providers with consistent, high quality images.
The monitor is also equipped with a hotkey for switching between DICOM and Gamma calibration. The entire PDC-W21.5 unit is IP54 rated for water and dust resistance, and the true flat front panel design enables easy cleaning with alcohol cleaning agents. Advantech’s PDC series products share the same design aesthetic as its POC series of medical computers. Thus, products from both series can be combined for visual integrity in specific environments. PDC medical monitors can be used as information display and retrieval devices or serve as control panels when integrated with other clinical equipment or mobile medical carts.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Response Time | 25ms |
| Resolution | Continuous |
| Backlight | LED |
| Touchscreen | Optional, projected Capacitive 10-points (AR) |
| VGA Port | 1.0000 |
| Display Max Resolution | 1920 x 1080 |
| Display Luminance | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Mounting | VESA 100 x 100 mm and 75 x 75 mm |
| HDMI | 1 |
| Display port | 1 |
| Speakers | Left/right |
| Certifications | FCC Class B, CE, EN60601-1/ IEC60601-1 Compliance |
| USB | 1 x Type B (optional, for P-Cap touch only) |
| Water resistance | IP54 (system) |
| Max Colours | 16.7 M colors (6-bits+A-FRC) |
| LCD MTBF | 30000 hours |
| DVI | 1 |
| Audio Out | 1 |
| Line In | 1 |
| DICOM | Optional, compatible to DICOM Part 14 (optional) |
| Light Transmission | 90±3% |
| Controller | USB interface |
| Durability | Over 50 million touches |
| Operating Temperature | 0 - 40° C |
| Display Type | 21.5" wide TFT color LCD (16:9), IPS |
| Dimensions | 550 x 360 x 63.66 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
