AIM-58
AIM-58
Advantech
10" Purpose-Built for Healthcare

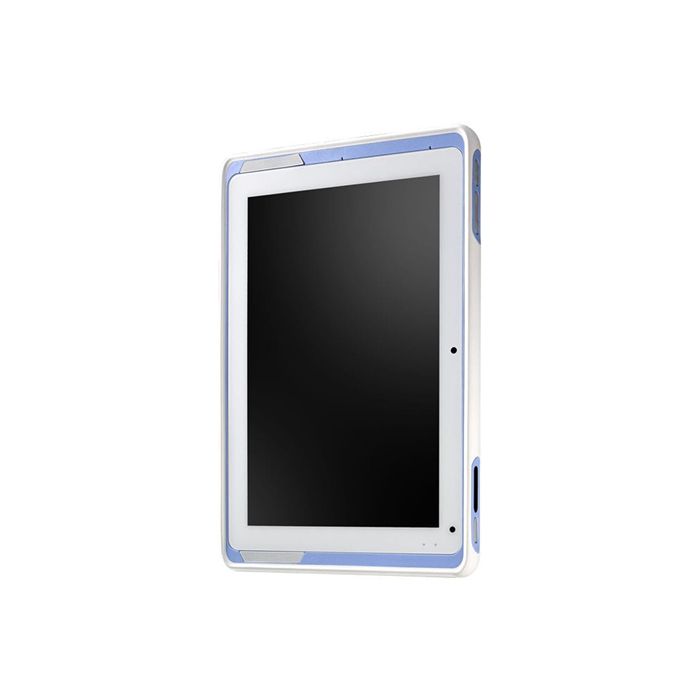

AIM-58 is a 10.1" medical-grade tablet that features a full HD screen with projected capacitive touch control, IP65-rated ingress protection, and Windows/Android operating system. Aimed at healthcare applications, AIM-58 can be equipped with optional extension modules and peripherals that enable seamless communication and unlimited mobility for diverse usage scenarios. The built-in high-resolution cameras and wireless communication technologies allow AIM-58 to be used to retrieve patient records and to facilitate telehealth applications. Moreover, the tablet can be integrated with a range of optional docking cradles and stands for flexible operation in various healthcare environments.
The AIM-58 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Colour | White/Blue |
| Key Features |
|
| Operating System | Windows 10 IoT Enterprise, Android 6.0 |
| Resolution | WUXGA 1920 x 1200 |
| Processor | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) |
| Storage |
eMMC: 64 GB
Micro SD: up to 256GB |
| IP Rating | IP65 |
| Input Voltage |
DC jack: 19V/3.42A
Docking pogo: 12V/2A |
| Bluetooth | Bluetooth® v4.1 |
| WLAN | IEEE 802.11 a/b/g/n/ac |
| Speakers | 2 x Internal speakers (2W) |
| Certifications | CE/FCC Class B, UL60601-1, EN60601-1, TELEC, NCC, SRRC |
| Brightness | 380 cd/m² |
| Touch Type | 10-point, multi-touch projected capacitive |
| Glass Type | Corning® Gorilla® Glass 3 |
| NFC | 13.56 MHz, compatible with ISO15693, ISO14443A, ISO 14443B, FeliCa |
| Standard I/O |
|
| Extended I/O |
|
| Docking |
1 x AIM dock 16-pin pogo connector
1 x USB 3.0, 9V power |
| Audio Jack | 1 x Audio combo jack (combines stereo audio output and mono microphone input) |
| Front Camera | 2.0-megapixel fixed-focus camera |
| Rear Camera | 5.0-megapixel aufo-focus camera with LED flash |
| Sensors | Ambient light sensor, e-compass, g-sensor, gyroscope |
| Control Buttons |
1 x Power button
2 x volume keys (up/down) 1 x programmable function key |
| Operating Temperature | 0 - 30 °C |
| Display Type | 10.1" FHD LCD |
| Battery |
Swappable battery: 2400mAh @ 10.8V, (26 WHr)
Operating time: Up to 5.5 hours (dependent on usage scenario) Charging time: 3 hours |
| Memory | 4 GB LPDDR3 |
| Dimensions | 280 x 18.3 x 180.1 mm |
