MEQ10-26AS

MEQ10-26AS

Marki Microwave

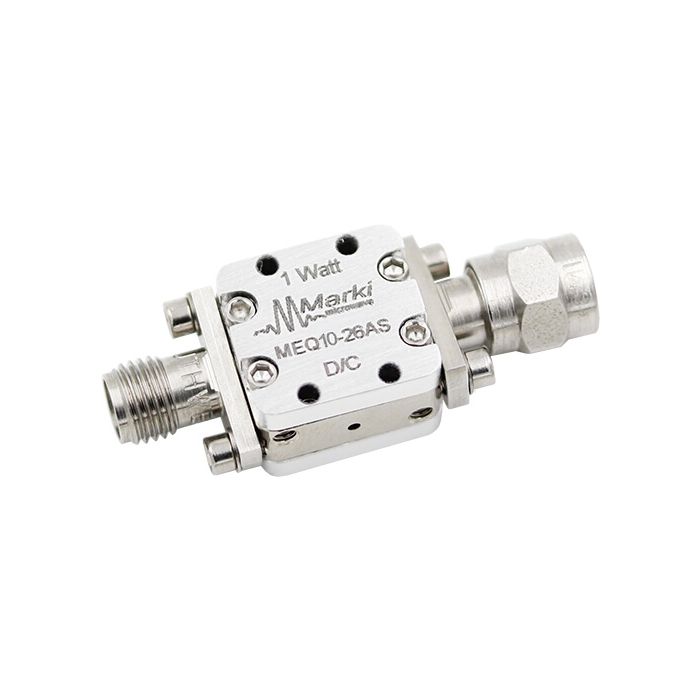

Passive GaAs MMIC Equaliser (DC - 26.5 GHz)

The MEQ10-26AS passive MMIC equaliser is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. This equaliser provides positive slope from DC to 26.5 GHz with a DC attenuation value of 10 dB and a 50-ohm match maintained over the entire operating range. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • DC attenuation of 10 dB
  • Typical Insertion Loss 0.7 dB at 26.5 GHz
  • Return loss: typical 20 dB over the entire band
  • Bidirectional
Return loss 20 dB
Maximum Frequency 26.5 GHz
Minimum Frequency DC
Applications
  • RF Transceivers
  • High-Speed Data
  • Telecom
  • Cable Loss Compensation
  • Amplifier Compensation
RoHS Y
More Information
Attribute Value
Data Sheet Click here to view
