MEQ6-26CSP1

MEQ6-26CSP1

Marki Microwave

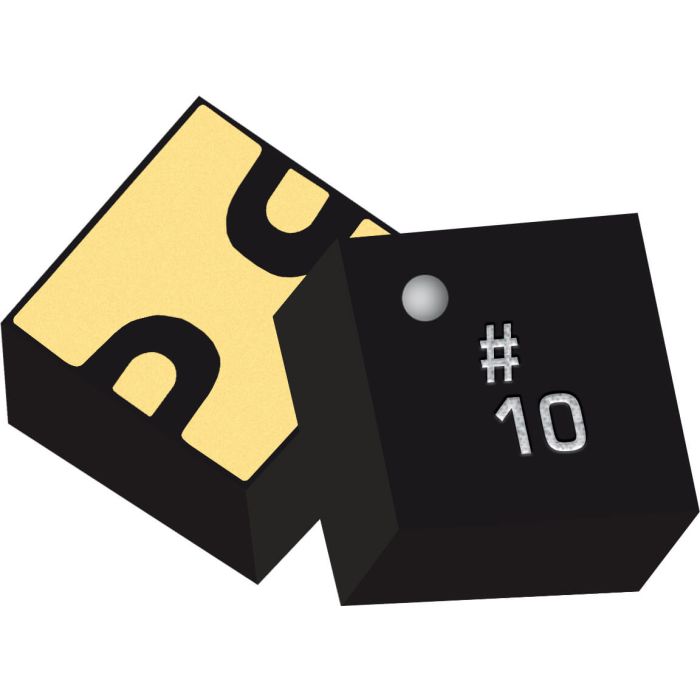

Chip Scale Package MMIC Equaliser (DC - 26 GHz)

The MEQ6-26CSP1 is a passive surface mount GaAs MMIC equaliser in a chip scale package (CSP). This equaliser is deal for compensating for low pass filtering effects in RF/microwave and high-speed digital systems.

The MEQ6-26CSP1 provides positive slope from DC to 26GHz with a DC attenuation of 6dB. The CSP allows for extreme miniaturisation of the SMT footprint while providing die-like performance. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low-cost form factor.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Small 1.5 x 1.5 mm package size
  • 2W Power Handling
  • DC attenuation of 6dB
  • Typical Insertion Loss 0.3 dB at 26GHz
  • VSWR < 1.5 Over Operating Band
  • Low SWaP
Return loss 23 dB
Maximum Frequency 26 GHz
Minimum Frequency DC
Applications
  • RF Transceivers
  • High-Speed Data
  • Telecom
  • Cable Loss Compensation
  • Amplifier Compensation
RoHS Y
More Information
Attribute Value
Data Sheet Click here to view
