MEQ10-45CSP1

MEQ10-45CSP1

Marki Microwave

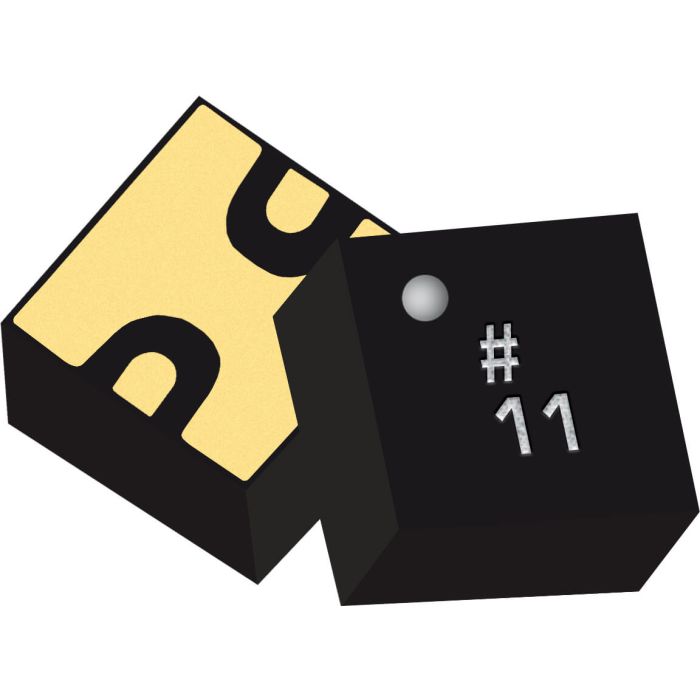

Chip Scale Package MMIC Equaliser (DC - 45 GHz)

The MEQ10-45CSP1 is a passive MMIC equaliser QFN ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ10-45CSP1 provides positive slope from DC to 45GHz with a DC attenuation of 10dB.

The new chip scale package allows for extreme miniaturisation of the SMT footprint. The unique design offers superior return loss to competitors in an extremely small footprint.

GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Small 1.5 x 1.5 mm package size
  • DC attenuation of 10dB
  • Typical Insertion Loss 0.7 dB at 45GHz
  • Typical VSWR of 1.5 Over Operating Band
  • Low SWaP
Return loss 13 dB
Maximum Frequency 45 GHz
Minimum Frequency DC
Applications
  • RF Transceivers
  • High-Speed Data
  • Telecom
  • Cable Loss Compensation
  • Amplifier Compensation
RoHS Y
More Information
Attribute Value
Data Sheet Click here to view
