MEQ6-45CSP1
MEQ6-45CSP1
Marki Microwave

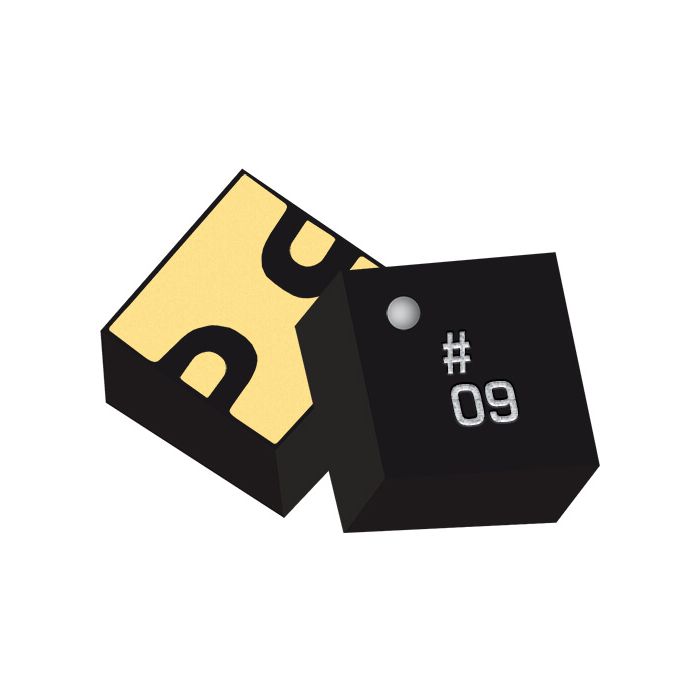

Chip Scale Package MMIC Equaliser (DC - 45 GHz)
The MEQ6-45CSP1 is a passive MMIC equaliser CSP ideal for compensating for low pass filtering effects in RF/microwave and high speed digital systems. The MEQ6-45CSP1 provides positive slope from DC to 45GHz with a DC attenuation of 6dB.
The chip scale package allows for extreme miniaturisation of the SMT footprint. The unique design offers superior return loss to competitors in an extremely small footprint.
GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Return loss | 17 dB |
| Maximum Frequency | 45 GHz |
| Minimum Frequency | DC |
| Applications |
|
| RoHS | Y |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
