MFBP-00029PSM
MFBP-00029PSM
Marki Microwave
Passive GaAs MMIC 12.23 - 13.96 GHz Bandpass Filter
Surface Mount Passive GaAs MMIC Bandpass Filter, 12.23 - 13.96 GHz
The MFBP-00029PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions.

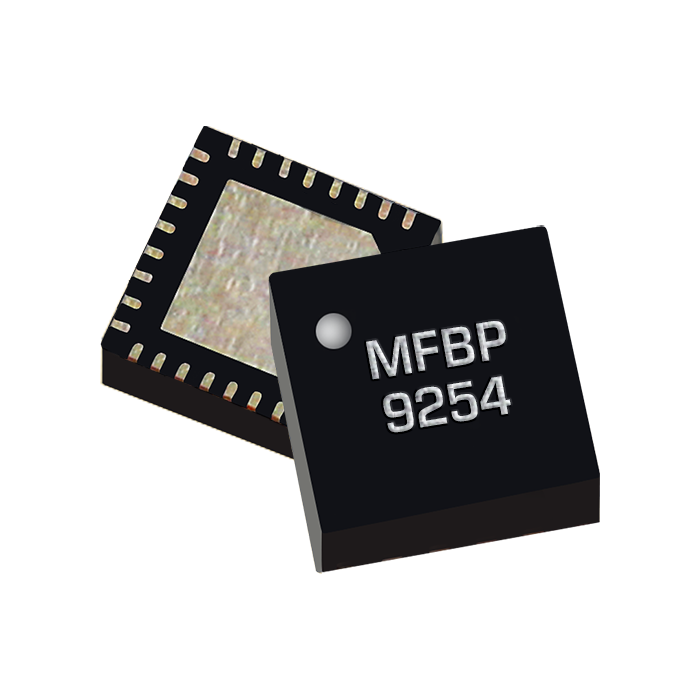

Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00029PSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Product Family | Fixed_Filters |
| Size | 5 x 5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
