MIC-730IVA
MIC-730IVA
Advantech

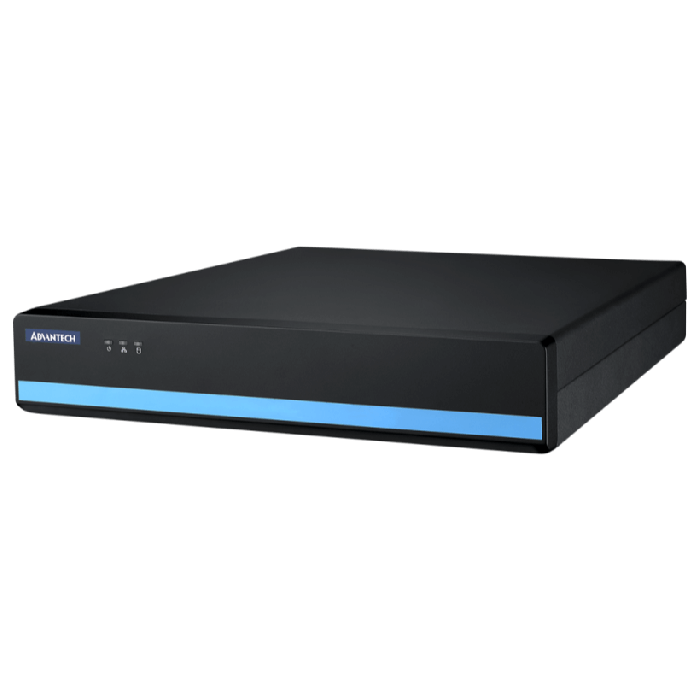

8ch AI Video System on NVIDIA® Jetson AGX Xavier™
8-ch AI Network Video Recorder Based on NVIDIA® Jetson Xavier™.
Key Features:
- NVR fan base design
- Embedded with NVIDIA® Jetson AGX Xavier™ up to 32 TOPS
- Supports 8 x PoE (IEEE 802.3af), 2 x GbE 8-ch DIO, 2 x RS232/422/485, 2 x USB 3.0
- Supports 1 x mPCIe, 2 x SATAIII
- Supports Allxon 24/7 remote monitoring and OTA deployment
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| CPU | 8-core NVIDIA Carmel ARM® v8.2 64-bit CPU |
| GPU | 512-core NVIDIA Volta GPU with 64 Tensor Cores |
| NVIDIA® CPU/GPU | NVIDIA® Jetson AGX Xavier ™ |
| I/O | 4-ch DI, 4-ch DO |
| Flash | 32GB eMMC |
| Storage | 2 x 3.5" or 2 x 2.5" SATAIII (6Gb/s) drives |
| Power Switch | 1 x Power ON/OFF Switch |
| Serial Ports | 2 x RS232/422/485 |
| OTG USB | 1 x Micro USB |
| Mini PCIe | 1 x mPCIe (Signal: PCIe+USB) |
| SIM | 1 x Nano SIM slot |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| Ethernet | 2 x 10/100/1000 Mbps |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
