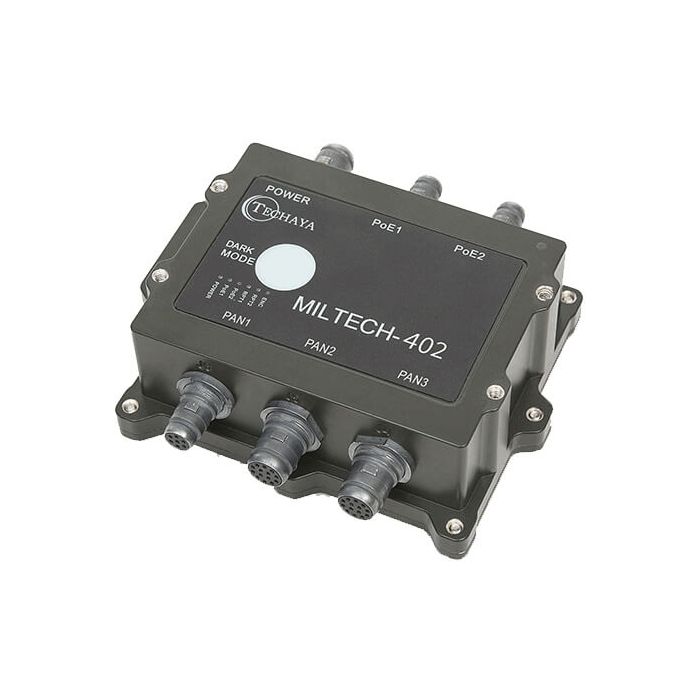

MILTECH 402
MILTECH 402
Enercon Technologies Europe
Miniature rugged PoE Ethernet switch with power distribution
The MILTECH 402 is a rugged, military-grade Fast Ethernet switch with PoE and 5VDC power distribution available over the Ethernet ports.
Combining LAN and power distribution and weighing less than 10 ounces, the MILTECH 402 drastically lightens the load and reduces cabling complexity in soldier carry applications. Once connected to a military-grade 10-16.8VDC smart battery supply (4 cell Li-ION), it uses dynamic power allocation to provision 2 LAN channels with PoE (15.4 watts each), 2 LAN channels with 16.8 Vdc/5A (Vbat) and1 LAN channel with 5V/1.5A up to a maximum power budget of 35W.
The MILTECH 402 is IEEE 802.3 compliant. Networking features include full wire-speed forwarding rate (26.8 Mpps), store-and-forward, Auto MDX-II/MDI-X, auto-negotiation, and address lookup.
The MILTECH 402 weighs less than 10 ounces including connectors and hardware and measures 3.93” x 3.7” x 1.34”. It meets MIL-STD 810F/G/GM, and MIL-STD 461 specifications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| IP Certified | IP67 |
| Type | Unmanaged Ethernet Switch |
| Total Number of Ports | 2-5 |
| Power Input | VDC (10 - 16.8VCD), 35W |
| Designed to Meet |
|
| Port Configuration |
|
| Operating Temperature | -40°C to 85°C |
| Dimensions | 100mm X 94.2mm X 34.1mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
