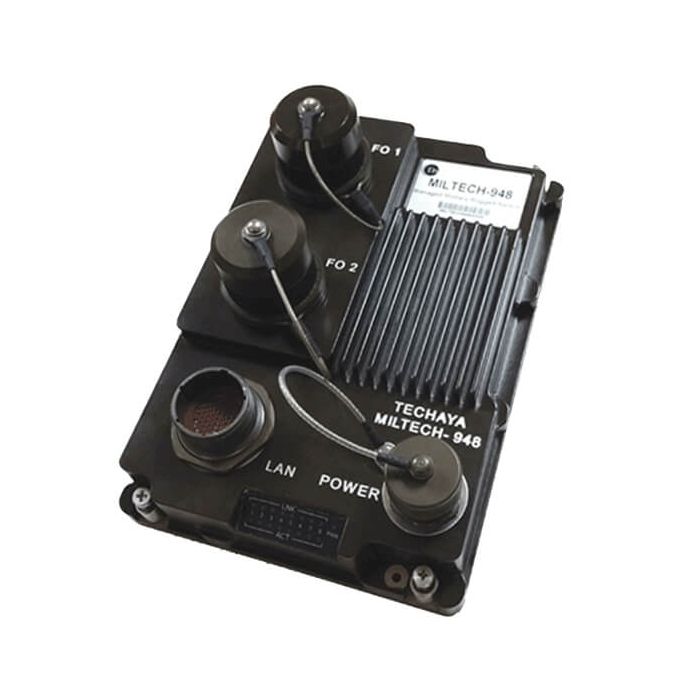

MILTECH 948

The MILTECH 948 is a rugged fully managed military-grade Ethernet switch combined with media conversion capabilities. It offers 8 triple-speed (10/100/1000Mbps) ports and the option of two fibre port operating at either 100Mbps or 1Gbps.

The MILTECH 948's flexible configuration allows it to act as both a physical media converter and a gigabit Ethernet switch. With both copper and fibre ports lets it can act as a physical media converter to bridge a change in physical media or extend a LAN connection.

As a fully managed switch, it supports all the latest network protocols for redundant link topology, security, multicast and management requirements. It is a compact solution for managing both Ethernet and high-speed fibre connections to IP-networked devices.

Developed for military and harsh avionic applications the MILTECH 948 features mechanical packaging enhancements designed to withstand excessive vibration and temperature variation to meet MIL-STD-810G airborne and ground environmental compliance. Using nominal 24 VDC power the MILTECH 948 can be easily integrated into most vehicle and avionic electronic systems.
