MILTECH 912
MILTECH 912
Enercon Technologies Europe
Rugged military-grade Gigabit Ethernet switch - 12 Port

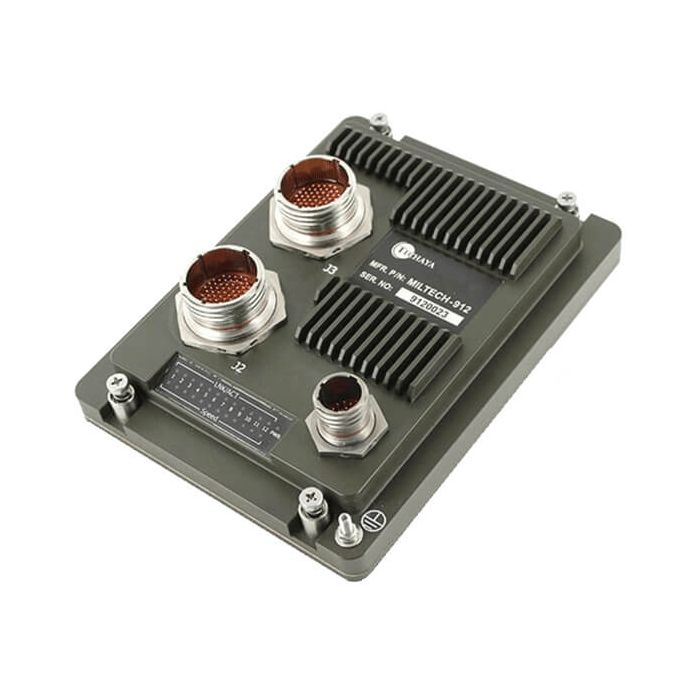

The MILTECH 912 is a 12 port (divided between two MIL-D-38999 connectors) MIL-STD, rugged, managed Layer 2 Ethernet switch with advanced Layer 3 static routing capabilities.
The compact MILTECH 912 saves valuable real estate on mobile platforms such as unmanned and manned airborne platforms, ground and underwater vehicles. Its advanced network features include on-device IPv4 and IPv6 unicast routing between virtual LANS (VLANS), traffic prioritisation (QoS), and bandwidth aggregation. Layer 3 on-device IPv4 and IPv6 static routing allows pre-configured routing between VLANs.
The MILTECH 912’s gigabit speeds and MIL-STD-1275 28VDC power bus make it instantly compatible with network device and power systems.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| IP Certified | IP67 |
| Type | Managed Ethernet Switch |
| Total Number of Ports | 11-15 |
| Power Input | 24VDC (16 - 36VDC), 7W |
| Designed to Meet |
|
| Port Configuration | 12 x 10/100/1000M Copper |
| Operating Temperature | -45°C to 85°C |
| Dimensions | 178.1mm X 136mm X 47.1mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
