Enercon Technologies Europe

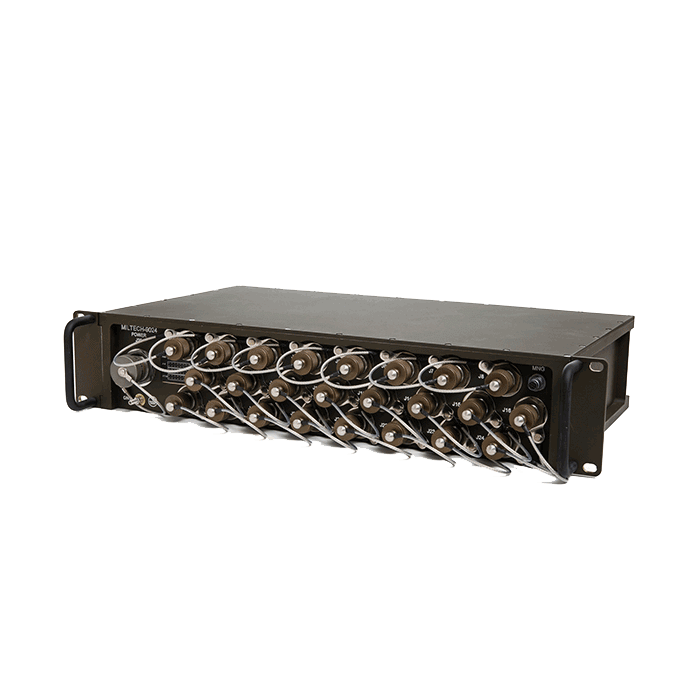

Military-grade managed Gigabit Ethernet router with D38999 Connectors
The MILTECH 9024 has 24 triple-speed (10/100/1000Mbps) ports using D38999 connectors and features both L2/L3 network switching and routing capabilities.
The MILTECH 9024 is specifically designed for battlefield C4ISR, voice, video, sensor data acquisition and communications in platforms that handle large quantities of real-time data. With 1G transmission speed and 24VDC power, it is instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability.
Layer 2 management includes virtual LANS (VLANS), traffic prioritisation/QoS, IPv4/IPv6 support, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management.
Developed for military and harsh ground applications, the MILTECH9024’s mechanical packaging enhancements are designed for MIL-STD-810G airborne and ground environmental compliance and high reliability. The unit has been specially hardened to improve ingress, impact, and shock/vibration protection, as well as eliminate all moving parts through the use of passive cooling.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| IP Certified | IP67 |
| Type | Rugged Router |
| Total Number of Ports | 21-25 |
| Power Input |
|
| Designed to Meet |
|
| Port Configuration | 24 x 10/100/1000M Copper |
| Operating Temperature | -45°C to 80°C |
| Dimensions | 482.6mm x 270mm x 88.1mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
