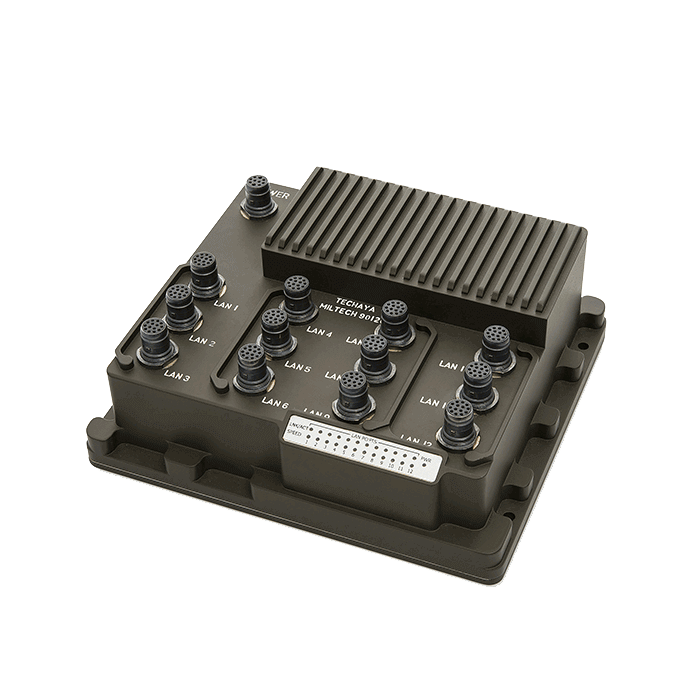

MILTECH 9012C

The MILTECH 9012C is a MIL-STD, fully- managed Layer 2 Ethernet switch and a Layer 3 Ethernet router with 12 triple-speed (10/100/1000Mbps) ports + SBC with optional Cisco ESR.

The MILTECH 9012C provides the best of both worlds in a single package – with Enercon's proven line-rate Layer 3 internal routing/switching and a COM Express computing platform that is designed to host a wide range of single-board computers (SBCs). You can host specialised functions such as:

• An integrated Cisco-IOS industry-standard router with security and mobility protocols
• Specialised networking software based on Linux (i.e.: iptables firewall)
• Unique encryption and security measures
• Robotic limb control using JAUS
• Vehicle management

It provides USB, RS-232, 4 x Open GND Input/output (discrete signals) and a GPS, all directly connected and controlled by the SBC. The SBC's can run any LINUX and Windows operating system and are equipped with two additional mini SATA cards to enable extended storage capacity for tactical use.

It features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritisation/QoS, IPv4/IPv6 support, and bandwidth aggregation. The integrated Cisco ESR router connects to external wired and wireless networks using IPv4/IPv6 routing and multicast protocols that include BGP, OSPF, GRE, EIGRP, CDP, IGMP and MLD. Advanced QoS helps maintain adequate connection speeds for voice and video traffic and external communications are secured with the latest encryption algorithms and integrated threat management.

The MILTECH 9012C uses industry-standard 24VDC power and is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B & MIL-STD-704A airborne, ground mobile environmental, EMI/RFI compliance with high reliability. The MILTECH 9012C is VICTORY standard certified by U.S. Army Combat Capabilities Development Command (CCDC) Ground Vehicle Systems Centre.
