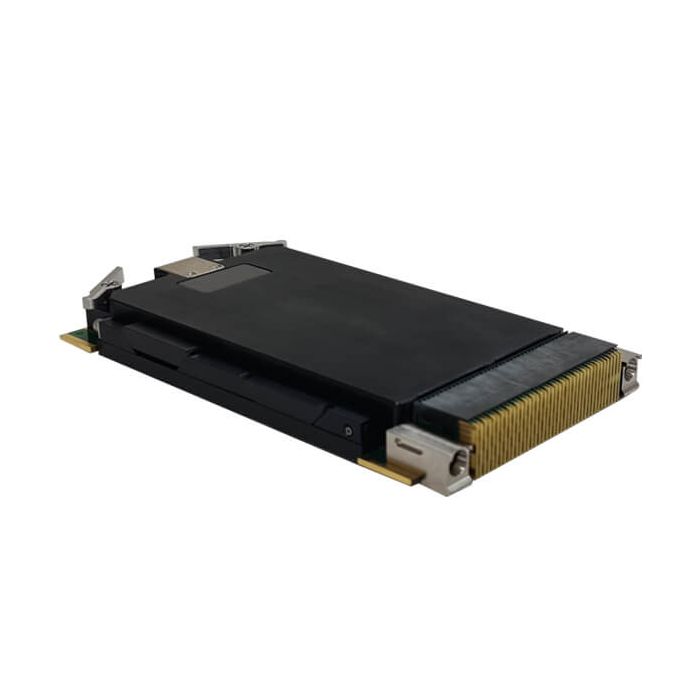

MILTECH 20G3UVPX
MILTECH 20G3UVPX
Enercon Technologies Europe
Military-grade 24 port Gigabit Ethernet switch in a 3U VPX form factor
This VPX networking module has 12 x 10/100/1000TX + 8 x SGMII ports and 4 x 1G fibre optic interfaces. It supports IEEE 1588 protocol and advanced Layer 2 / Layer 3 communication protocols for security, QoS and data redundancy.
The MILTECH 20G3UVPX supports advanced secure boot via dedicated FPGA, BIT functionality, zeroization and data declassification. Monitoring and management via IPMI SOSA™ aligned interface. Comply with MIL-STD-461E, MIL-STD-810F/G, when installed in an appropriate chassis.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Type | Managed Ethernet Switch |
| Total Number of Ports | 21-25 |
| Power Input |
5VDC 12V, 12 or 15W |
| Designed to Meet |
|
| Port Configuration |
|
| Operating Temperature | -45°C to 85°C |
| Dimensions | 3U |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
