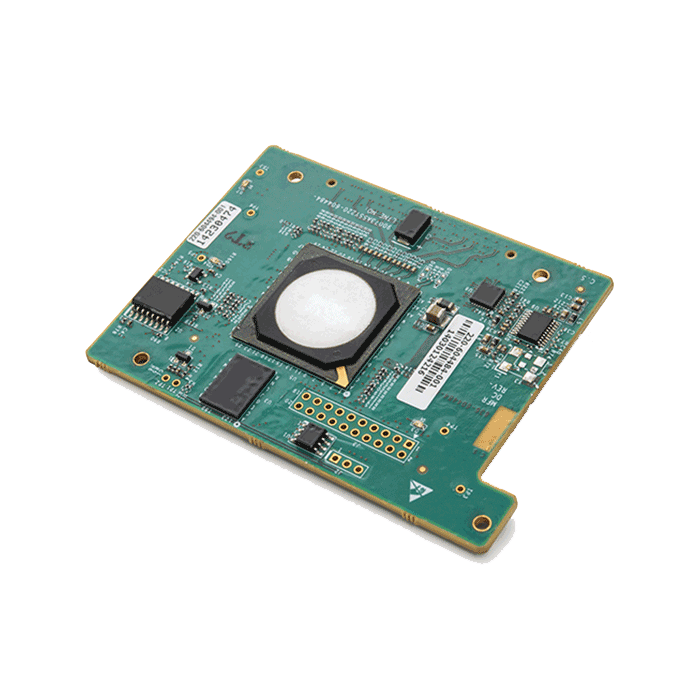

MILTECH 9124

The MILTECH 9124 is a fully-managed board-level Ethernet switch/router with 24 triple-speed (10/100/1000Mbps) ports supporting Layer 2 Ethernet switch and full Layer 3 router functionality.

The MILTECH 9124 is ideal for mobile platforms, shipboard systems, ground, avionic, and UAVs that deal with high-resolution video and other data-intensive signalling.

Advanced network routing features include support for virtual LANS (VLANS), traffic prioritisation (QoS), bandwidth aggregation, dynamic routing (RIPV1, V2, OSPF V2/V3, Multicast Routing, VRRP, ECMP Routing) and full IPv6.

With a board-to-board connector, it can easily be integrated as a module-based network building block in any military-grade communications platform. With conformal coating, and designed to withstand working temperatures of -45°C to +85°C, it complies with MIL-STD-810 and MIL-STD-461 when incorporated in a suitable enclosure. The MILTECH 9124 uses a power input of 3.3VDC with a maximum power consumption of 25 watts and measures only 2.55” (65mm) x 3.58” (91mm) to deliver a significant SWAP-C advantage.

The MILTECH 9124 has an available Rapid Evaluation Board which allows developers to become familiar with the switching functionality of the product and quickly evaluate the product while accelerating the product design of the final system. This reduces time-to-market, reduces development costs and lowers design risks. The MILTECH 9124 EVB Carrier Board is equipped with RJ45 connectors to serve as a reference design for the development of customer target hardware in which the MILTECH 9124 is deployed.
