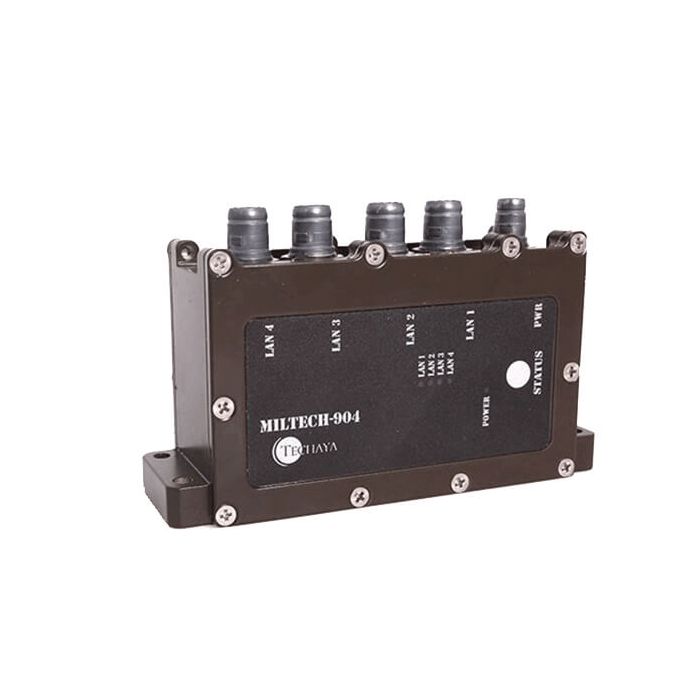

MILTECH 904

MILTECH 904

Enercon Technologies Europe

Compact military-grade Gigabit Ethernet managed switch - 4 Port

The MILTECH 904 is a 4 triple-speed (10/100/1000Mbps) port, ultra-compact, fully-managed military-grade Ethernet switch with advanced Layer 3 static routing capabilities.

The MILTECH 904 switch leads the industry in functionality, size, weight, power and cost (SWaP-C). It saves valuable real estate on mobile platforms such as unmanned and compact aerial platforms, mobile ground vehicles and UGVs, and autonomous surface and underwater craft.

Advanced network features include switching protocols, on-device IPv4 and IPv6 static routing between VLANs, traffic prioritisation (QoS), and bandwidth aggregation. Security functions include accounting, authentication and authorization (AAA) via TACACS and/or RADIUS servers, and dark Mode operation. Authorization Levels allow multiple users to have up to 15 different levels of access to switch management to greatly enhance the security of any network.

Its mechanical packaging enhancements, including ruggedized SCE2 circular connectors, is designed for MIL-STD-810F airborne and ground environmental compliance and high reliability.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
IP Certified IP68
Type Managed Ethernet Switch
Total Number of Ports 2-5
Power Input 24VDC (16 - 36VDC), 5W
Designed to Meet
  • MIL-STD-1275
  • MIL-STD-704
  • MIL-STD-810
  • MIL-STD-461
Port Configuration 4 x 10/100/1000M Copper
Operating Temperature -45°C to 85°C
Dimensions 102mm X 73.3mm X 36mm
More Information
Attribute Value
Data Sheet Click here to view
