MILTECH 309
MILTECH 309
Enercon Technologies Europe
Fast embedded military-grade board level 8 port Ethernet switch

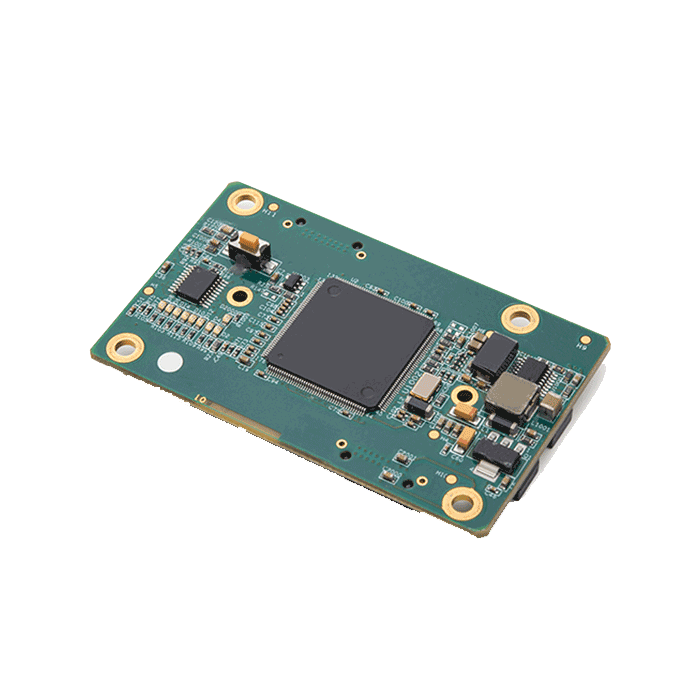

The MILTECH309 is a rugged, cost-effective, ultra-compact board-level Ethernet switching solution equipped with 8 fast Ethernet 10/100 ports.
The MILTECH 309 is a robust solution for providing local area network (LAN) connectivity to system-level IP-enabled computing devices through board-to-board connectors. It consumes only 2W of power, uses 5VDC and measures only 1.7” x 3” x .5”.
A ruggedised design, conformal coating, and wide temperature range make the MILTECH 309 MILSTD-461E, MILSTD-810F/G/GM and IP68 compliant when installed in an appropriate enclosure.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| IP Certified | IP68 |
| Type | Unmanaged Embedded Ethernet Switch |
| Total Number of Ports | 6-10 |
| Power Input | 5VDC, 2W |
| Designed to Meet |
|
| Port Configuration | 8 x 10/100M Copper |
| Operating Temperature | -45°C to 85°C |
| Dimensions | 71mm x 43.18mm x 11.4mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
