Enercon MILTECH 9128 | APC Technology Group

MILTECH 9128

MILTECH 9128

Enercon Technologies Europe

Managed board level 24 port router/switch with 4 x 10G fiber ports

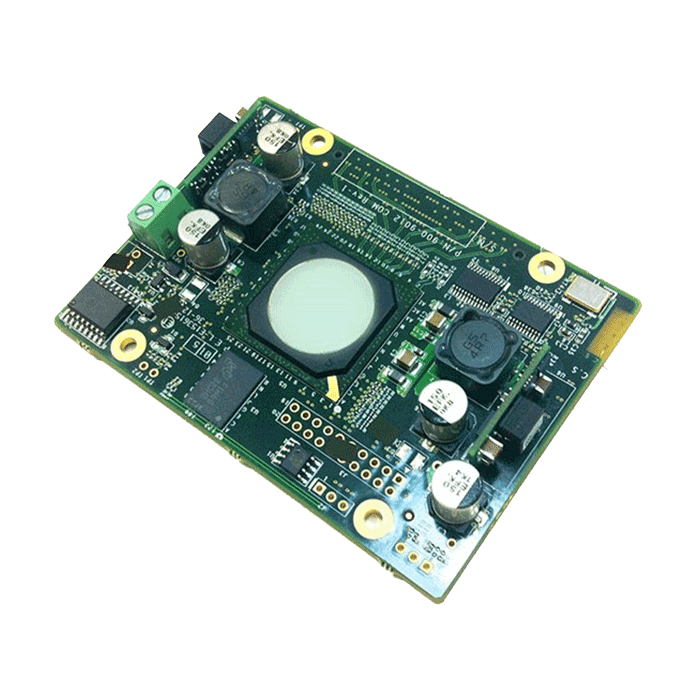

The MILTECH 9128 is a 24 triple-speed (10/100/1000Mbps) Copper ports and 4 x 10G Fiber ports embedded Ethernet switch/router supporting both Layer 2 Ethernet switching and full Layer 3 dynamic routing on a single PCB-level solution.

The 9128 PCB-level Ethernet switch helps simplify the complex traffic management of military-based advanced optics applications. With conformal coating and a wide temperature range, it is ideal for rugged manned and unmanned military and civilian mobile, tactical, airborne vehicle platforms in situational awareness operations.

Advanced network routing features include support for virtual LANS (VLANS), traffic prioritisation (QoS), bandwidth aggregation, dynamic routing (RIPV1, V2, OSPF V2/V3, Multicast Routing, VRRP, ECMP Routing) and full IPv6. The MILTECH 9128 is only 3.55” (90mm) by 3.55” (90mm) for easy placement in embedded and OEM platforms. It operates at 3.3VDC with a maximum power consumption of 25 watts.

It has an available Rapid Evaluation Board which allows developers to become familiar with the switching functionality of the product and quickly evaluate the product while accelerating the product design of the final system. This reduces time-to-market, reduces development costs and lowers design risks.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
IP Certified IP67
Type Managed Embedded Ethernet Switch
Total Number of Ports 26-30
Power Input 3.3VDC, 25W
Designed to Meet
  • MIL-STD-810
  • MIL-STD-461
Port Configuration
  • 24 x 1G Copper
  • 4 x 10G Fiber
Operating Temperature -45°C to 85°C
Dimensions 90mm x 90mm
More Information
Attribute Value
Data Sheet Click here to view
