MM1-0212H
MM1-0212H
Marki Microwave
GaAs MMIC Double Balanced Mixer
MM1-0212H is a GaAs MMIC double balanced mixer that is optimised for low frequency applications. MM1-0212H is a low frequency S band mixer that works well as both an up and down converter to through X band.
This mixer offers low conversion loss and high LO to RF isolations at moderate LO powers. The sister MM1-0212S is recommended for applications which demand higher linearity.

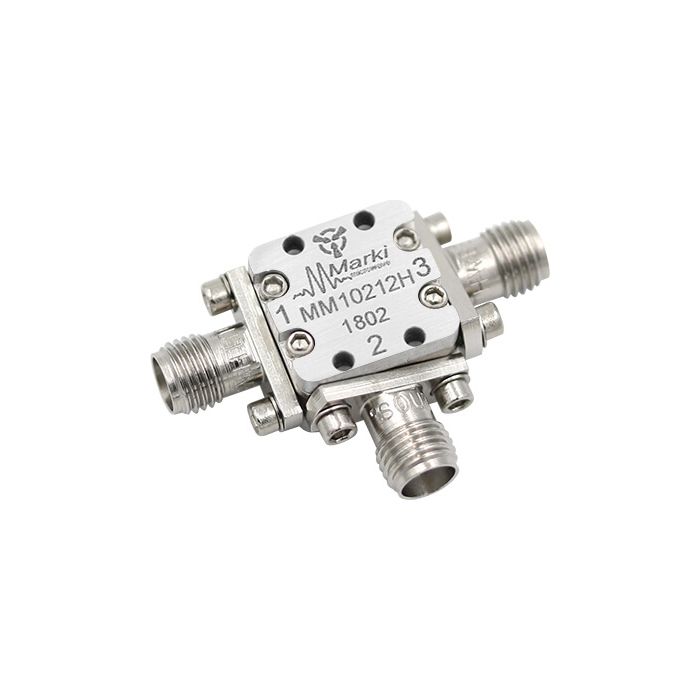

The MM1-0212L is recommend for low power applications. The MM1-0212H is available as both wire bondable die and as connectorised modules.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 3 |
| LO Drive (dBm) | +13 to +17 |
| Conversion Loss (dB) | 8.5 |
| Isolations L-R (dB) | 47 |
| RF/LO (GHz) Low | 2 |
| RF/LO (GHz) High | 12 |
| IIP3 (dBm) | +23 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
