MM1-0212S
MM1-0212S
Marki Microwave
GaAs MMIC Double Balanced Mixer

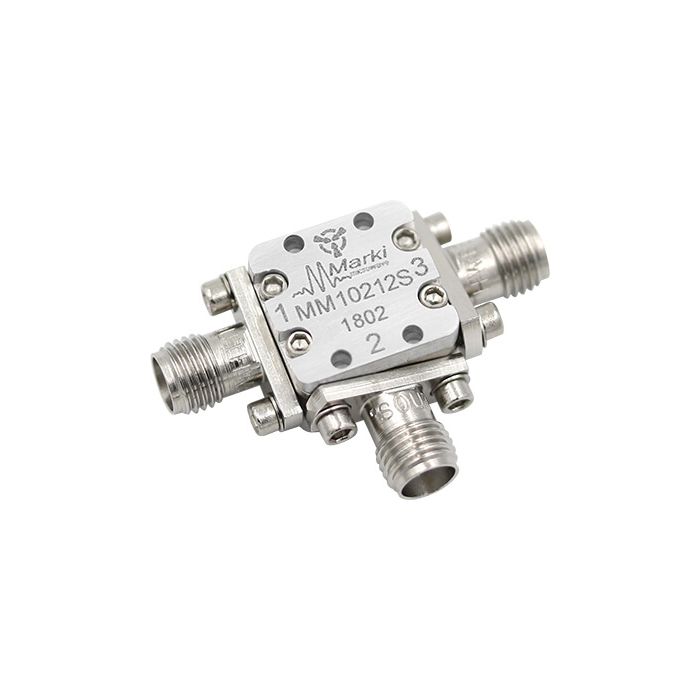

MM1-0212S is a highly linear GaAs MMIC double balanced mixer. MM1-0212S is a low frequency, high linearity S band mixer that works well as both an up and down converter to through X band. This mixer offers low conversion loss and high LO to RF isolations at the nominal LO drive.
The sister MM1-0212H and MM1-0212L are recommended for applications which need LO operation at lower powers. The MM1-0212S is available as both wire bondable die and as connectorised modules.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 3 |
| LO Drive (dBm) | +17 to +23 |
| Conversion Loss (dB) | 8.5 |
| Isolations L-R (dB) | 47 |
| RF/LO (GHz) Low | 2 |
| RF/LO (GHz) High | 12 |
| IIP3 (dBm) | +26 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
