MM1-0312HSM
MM1-0312HSM
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-0312HSM is a passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor.

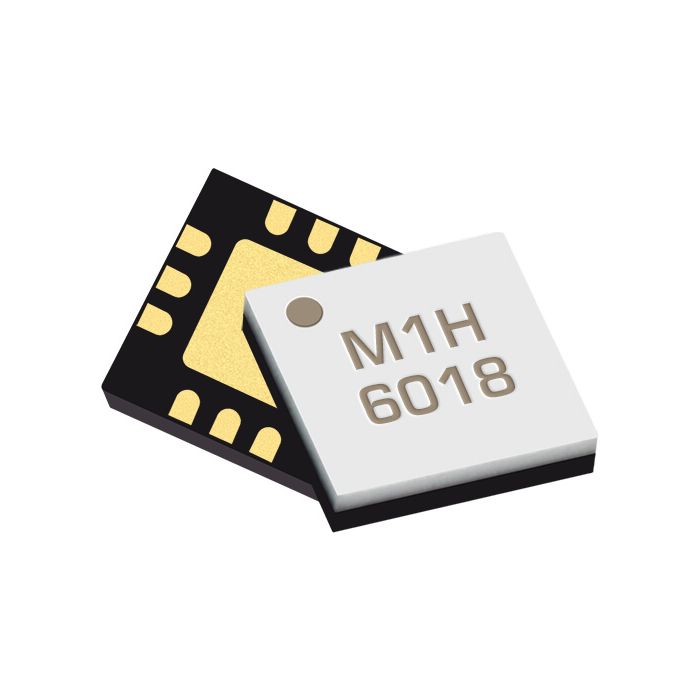

The MM1-0312HSM is available in a lead-free, RoHS compliant QFN surface mount package and is compatible with standard leaded and lead-free PCB reflow soldering processes.
The MM1- 0312HSM is a superior alternative to Marki Microwave surface mount M1 and M3 mixers.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | DC to 4.5 |
| LO Drive Min (dBm) | +12 to 20 |
| Conversion Loss (dB) | 7 |
| Isolations L-R (dB) | 49 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +19 |
| Product Type | MMIC/Microlithic Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
