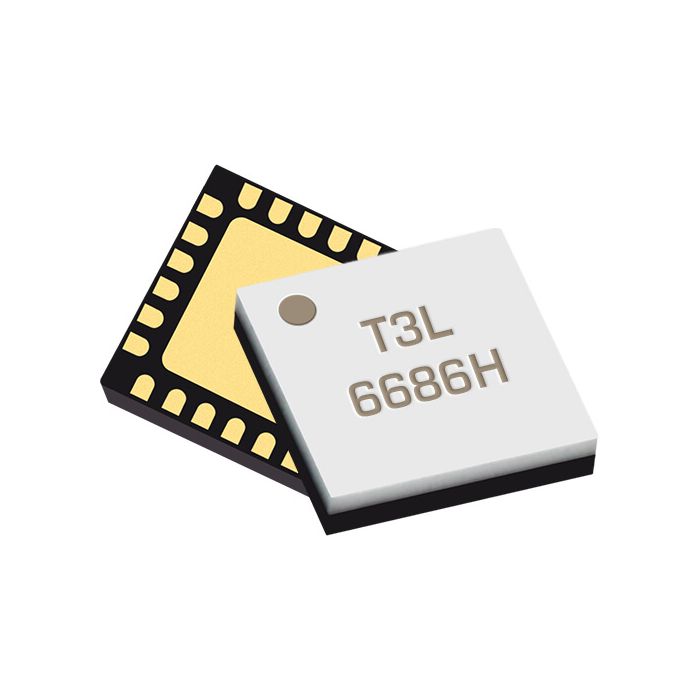

MT3L-0113HSM
MT3L-0113HSM
Marki Microwave
GaAs MMIC High Dynamic Range Mixer
MT3L-0113HSM is a GaAs MMIC triple balanced mixer with high dynamic range and low conversion loss. This mixer belongs to the T3 family which offers high IP3, P1dB, and broad operating bandwidths for applications in the S, C and X bands.
MT3L0113HSM is the monolithic cousin of the MT3-0113HCQG and sister of the MT3H-0113HSM targeted towards lower IF applications in a small footprint.
The MT3L-0113HSM is available as both wire bondable die and as connectorised modules.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | 0.25 to 5 |
| LO Drive (dBm) | +15 to +25 |
| Conversion Loss (dB) | 8.5 |
| Isolations L-R (dB) | 39 |
| RF/LO (GHz) Low | 1.5 |
| RF/LO (GHz) High | 13 |
| IIP3 (dBm) | +31 |
| Product Type | T3 Mixer |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
