MM2-0530H
MM2-0530H
Marki Microwave
GaAs MMIC Triple Balanced Mixer
The MM2-0530H is a passive MMIC triple balanced mixer. It features a broadband IF port that spans from 2 to 20 GHz, and has excellent spurious suppression.

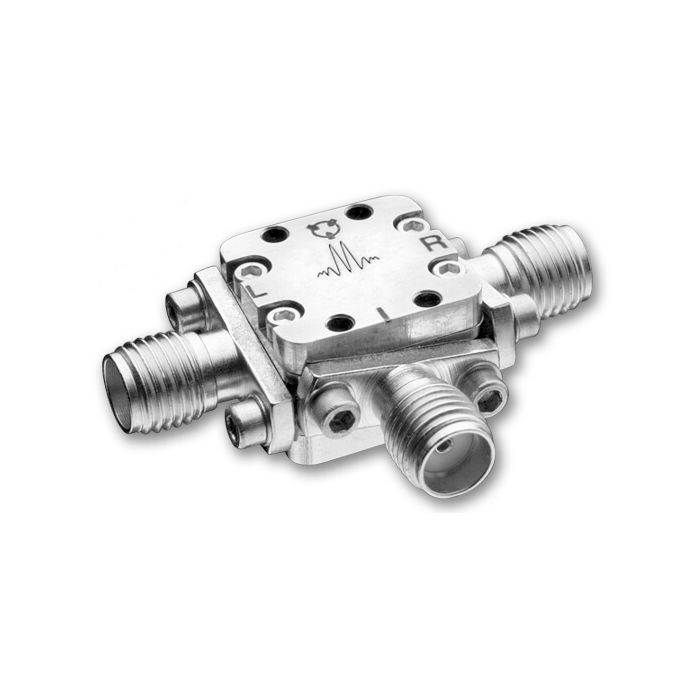

GaAs MMIC technology improves upon the previous generation of hand assembled, hybrid M2 triple balanced mixers with improved isolations, unit-to-unit repeatability and reliability. The MM2-0530H is available as a wire bondable chip or connectorised SMA package.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | 2 to 20 |
| LO Drive Min (dBm) | +14 to +20 |
| Conversion Loss (dB) | 9 |
| Isolations L-R (dB) | 40 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +28 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
