MM1-0212LSM
MM1-0212LSM
Marki Microwave
Low Power GaAs MMIC Double Balanced Mixer
The MM1-0212LSM is a low power GaAs MMIC double balanced mixer that operates at LO powers as a low as +1 dBm. MM1- 0212LSM is a low frequency, low power S band mixer that works well as both an up and down converter through X band.
This mixer offers low conversion loss and high LO to RF isolation at extremely low LO drives. The sister MM1-0212HSM and MM1-0212SSM are recommended for high linearity applications.

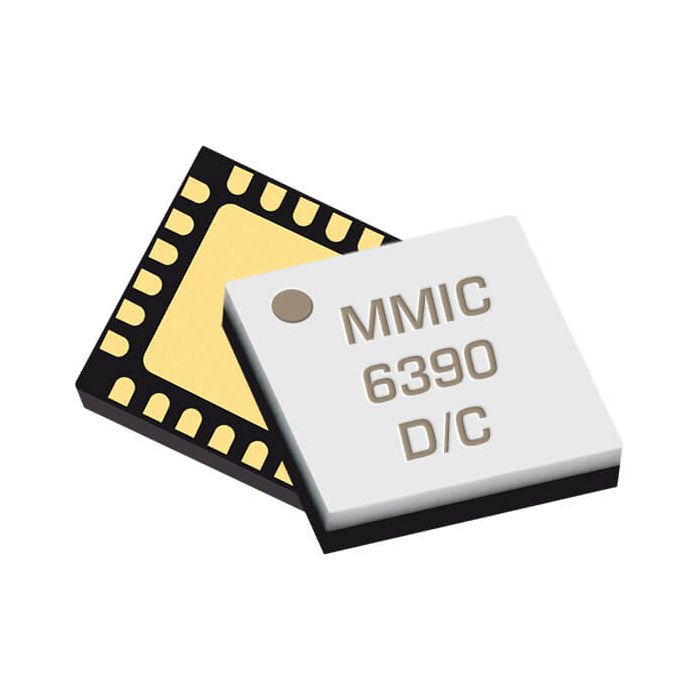

The MM1-0212LSM is available in a 4x4 mm QFN package. Evaluation boards are available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | 0 to 3 |
| LO Drive Min (dBm) | +1 to +15 |
| Conversion Loss (dB) | 8.5 |
| Isolations L-R (dB) | 57 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +13 |
| Product Type | MMIC/Microlithic Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
