MM1-0212HSM
MM1-0212HSM
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-0212HSM is a GaAs MMIC double balanced mixer that is optimised for low frequency applications. MM1-0212HSM is a low frequency S band mixer that works well as both an up and down converter through X band.
This mixer offers low conversion loss and high LO to RF isolations at moderate LO powers. The sister MM1-0212SSM is recommended for applications which demand higher linearity. The MM1-0212LSM is recommend for low power applications.

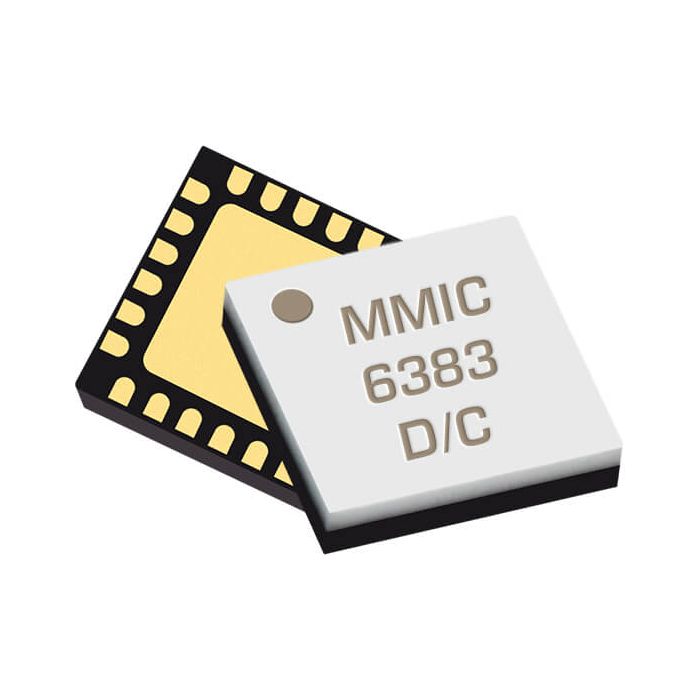

The MM1-0212HSM is available in a 4x4 mm QFN package. Evaluation boards are available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | 0 to 3 |
| LO Drive Min (dBm) | +13 to +17 |
| Conversion Loss (dB) | 8.5 |
| Isolations L-R (dB) | 57 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +25 |
| Product Type | MMIC/Microlithic Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
