MM1-2567L
MM1-2567L
Marki Microwave
GaAs Double-Balanced Mixer

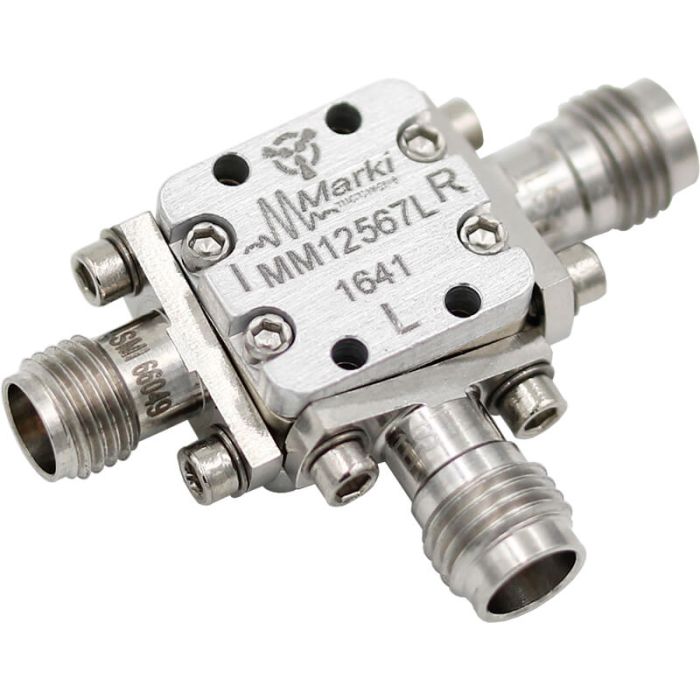

The MM1-2567LS is a passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor.
The MM1-2567LS is available in a connectorised package.
Owing to its passive balun circuitry, the mixer can be used in two different configurations: Configuration A for highest efficiency and Configuration B for the best spurious performance and lowest LO drive. Refer to page 2 for more information on the operating configurations.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | DC to 30 |
| LO Drive (dBm) | +6 to +16 |
| Conversion Loss (dB) | 9 |
| Isolations L-R (dB) | 33 |
| RF/LO (GHz) Low | 25 |
| RF/LO (GHz) High | 67 |
| IIP3 (dBm) | +9 |
| Product Type | MMIC Bare Die/Modules |
