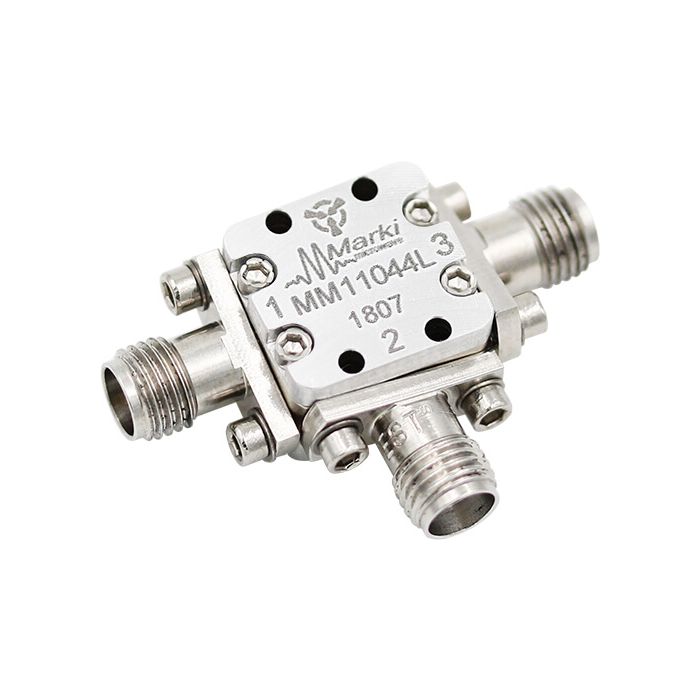

MM1-1044L
MM1-1044L
Marki Microwave
Low Power GaAs MMIC Double Balanced Mixer
The MM1-1044L is a low power GaAs MMIC double balanced mixer that is designed for and operates at the K and Ka band 5G frequencies. MM1-1044L is a low power Ka band mixer that works well as both an up and down converter.
This mixer offers low conversion loss and high LO to RF isolations over a broadband Ku to Ka band. The sister MM1-1044H is recommended for high linearity applications.
The MM1-1044L is available as both wire bondable die and as connectorised modules.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 14 |
| LO Drive Min (dBm) | +7 to +15 |
| Conversion Loss (dB) | 7.6 |
| Isolations L-R (dB) | 47 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +12.5 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
