MM1-0320L
MM1-0320L
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-0320L is a passive double balanced MMIC mixer. It features excellent conversion loss, superior isolations and spurious performance across a broad bandwidth, in a highly miniaturised form factor. Low LO drive requirement allows operation at as low as +5dBm inputs.

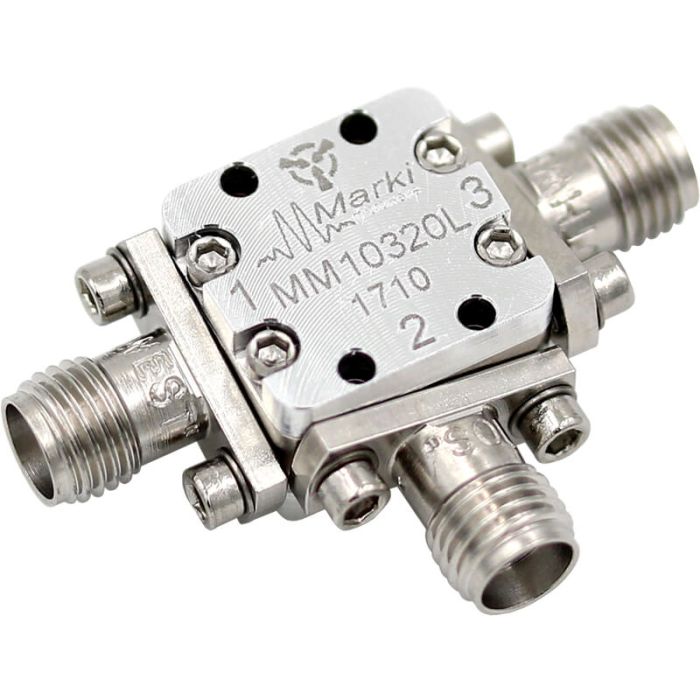

The MM1-0320L is available as a wire bondable chip or an SMA connectorised package. The MM1-0320L is a superior alternative to Marki Microwave carrier and packaged M1 and M3 mixers.
The MM1-0320L is the low barrier version of the MM1-0320H. If higher LO power is available, the MM1-0320H is recommended for higher mixer linearity.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | DC to 4 |
| LO Drive Min (dBm) | +5 to +9 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 54 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +10 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
