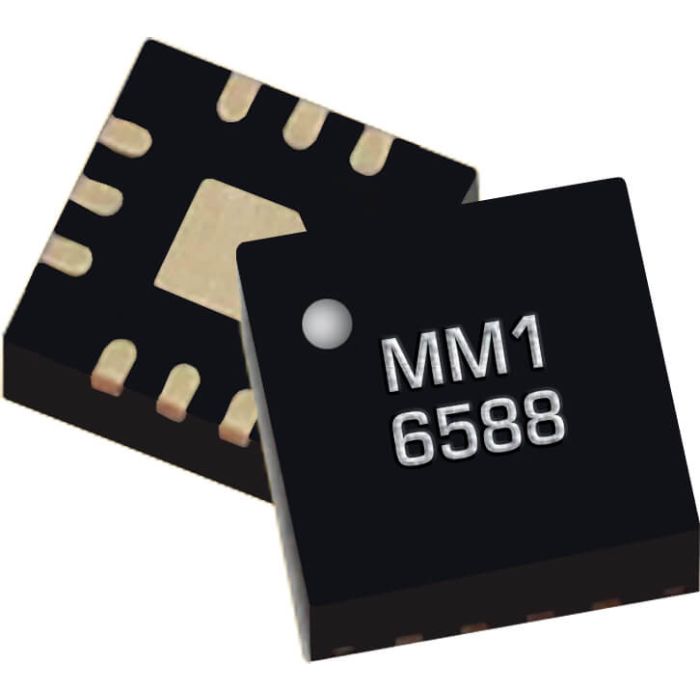

MM1-0832HPSM
MM1-0832HPSM
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-0832HPSM is a GaAs MMIC double balanced mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor.
The MM1-0832HPSM is available in a lead-free, RoHS compliant 3x3 mm QFN package and is compatible with standard leaded and lead-free PCB reflow soldering processes. Evaluation boards are also available.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Applications |
|
| IF (GHz) | 0 to 12 |
| LO Drive Min (dBm) | +12 to +23 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 50 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +23 |
| Product Type | MMIC/Microlithic Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
