MT3H-0113LSM
MT3H-0113LSM
Marki Microwave
GaAs MMIC High Dynamic Range Mixer
The MT3H-0113LSM is a triple balanced passive diode mixer offering high dynamic range, low conversion loss, and excellent repeatability.

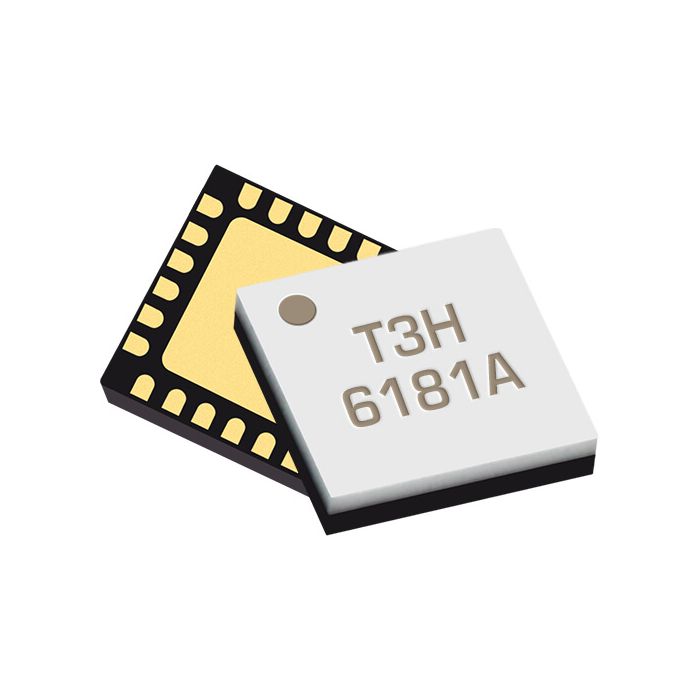

As with all T3 mixers, this mixer offers unparalleled nonlinear performance in terms of IIP3, P1dB, and spurious performance with a flexible LO drive requirement from +7 dBm to +15 dBm. RF, LO, and IF ports are all operated single ended due to integrated baluns. The MT3H-0113LSM is available in a 4x4mm QFN, or in an SMA connectorised evaluation fixture.
The MT3H-0113LSM is a superior alternative to Marki Microwave carrier and packaged T3 mixers. If >+16dBm LO power is available, the higher barrier MT3H-0113HSM is recommended.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | 0.8 to 8.5 |
| LO Drive (dBm) | +7 to +15 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 42 |
| RF/LO (GHz) Low | 1.5 |
| RF/LO (GHz) High | 13 |
| IIP3 (dBm) | +22 |
| Product Type | T3 Mixer |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
