MM1-0212L
MM1-0212L
Marki Microwave
Low Power GaAs MMIC Double Balanced Mixer

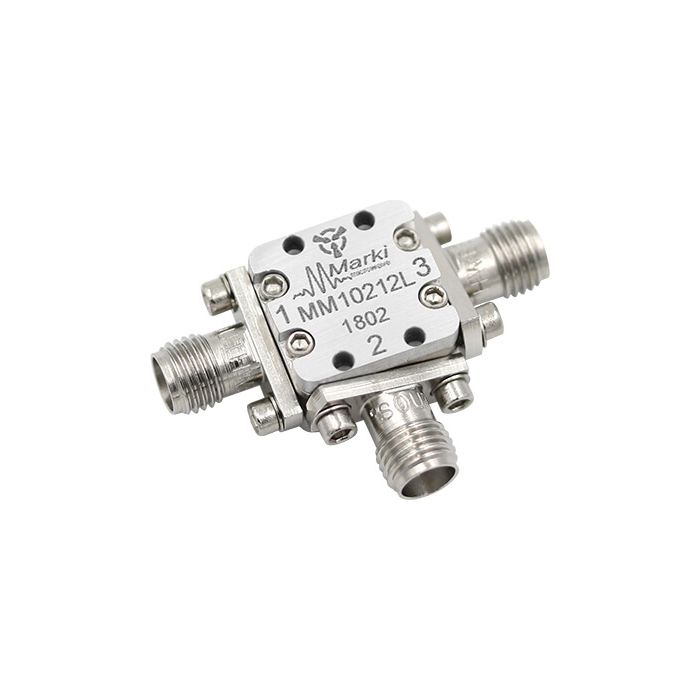

MM1-0212L is a low power GaAs MMIC double balanced mixer that operates at LO powers as a low as +1 dBm. MM1-0212L is a low frequency, low power S band mixer that works well as both an up and down converter to through X band.
This mixer offerslow conversion loss and high LO to RF isolations at extremely low LO drives. The sister MM1-0212H and MM1-0212S are recommended for high linearity applications. The MM1-0212L is available as both wire bondable die and as connectorised modules
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 3 |
| LO Drive (dBm) | +1 to +15 |
| Conversion Loss (dB) | 8 |
| Isolations L-R (dB) | 47 |
| RF/LO (GHz) Low | 2 |
| RF/LO (GHz) High | 12 |
| IIP3 (dBm) | +12.5 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
