MM1-0330H
MM1-0330H
Marki Microwave
GaAs MMIC Double Balanced Mixer

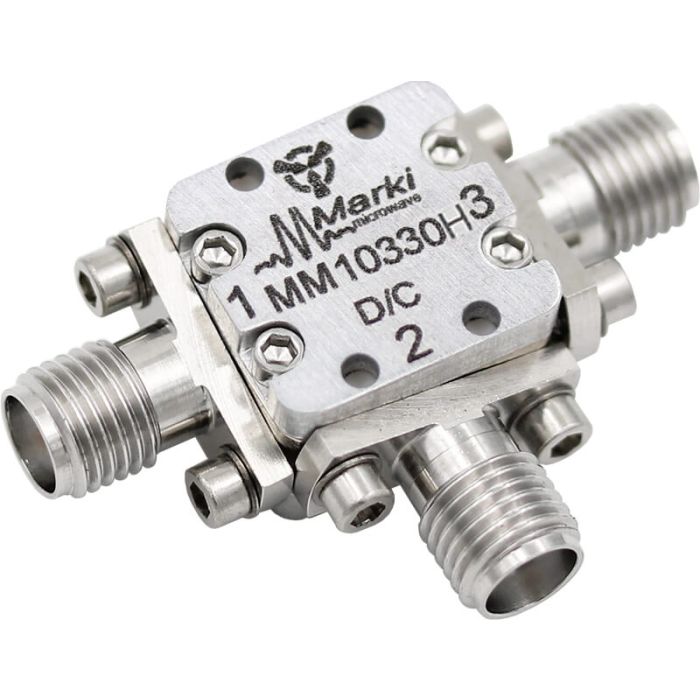

MM1-0330H is a GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations, and spurious performance across a broad 3-30 GHz bandwidth.
The MM1-0330H works well as both an up and down converter through the K band and beyond with an IF response from DC to 5GHz. The MM1-0330H features high linearity.
For higher linearity applications, the sister MM1-0330T is recommended. It is available as both wire bondable die and as a connectorised module.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 5 |
| LO Drive (dBm) | +15 to +23 |
| Conversion Loss (dB) | 7 |
| Isolations L-R (dB) | 48 |
| RF/LO (GHz) Low | 3 |
| RF/LO (GHz) High | 30 |
| IIP3 (dBm) | +21 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
