MM1-0832H
MM1-0832H
Marki Microwave
GaAs MMIC Double Balanced Mixer
The MM1-0832H is a GaAs MMIC double balanced mixer that is designed for and operates at X through K bands. MM1-0832H is a high linearity K band mixer that works well as both an up and down converter.
This mixer offers low conversion loss and high LO to RF isolations over a broadband X to K band. The sister component MM1-0832L is recommended for low power applications.

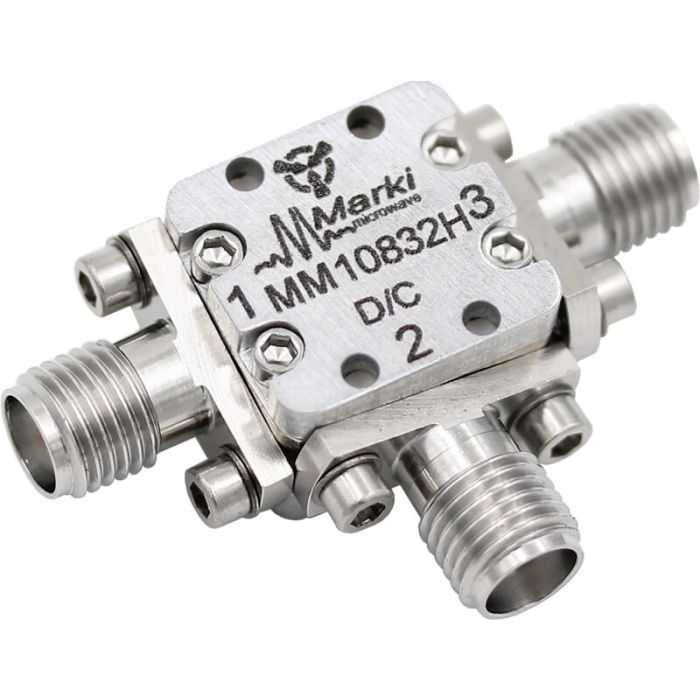

The MM1-0832H is available as both a wire bondable die and as a connectorised module
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | 0 to 12 |
| LO Drive (dBm) | +11 to +20 |
| Conversion Loss (dB) | 7.6 |
| Isolations L-R (dB) | 50 |
| RF/LO (GHz) Low | 8 |
| RF/LO (GHz) High | 32 |
| IIP3 (dBm) | +22.8 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
