MM1-1850HSM
MM1-1850HSM
Marki Microwave
GaAs MMIC Double Balanced Mixer

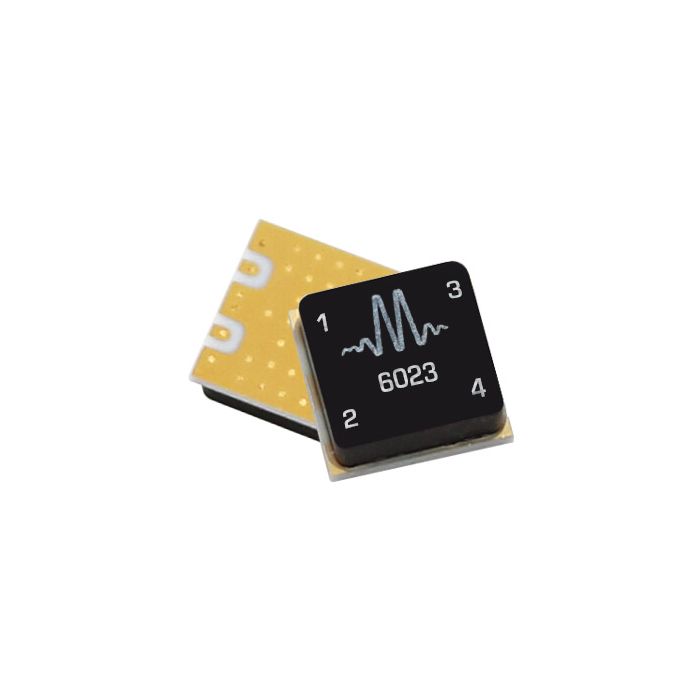

The MM1-1850HSM is a GaAs MMIC double balanced mixer that operates at high frequency in a proprietary surface mount package. MM1-1850HSM is a K/Ka band mixer that works well as both an up and down converter.
This mixer offers exceptionally high frequency RF bandwidth for a surface mount mixer and high spurious suppression. The sister MM1-1850SSM is recommended for high linearity applications.
The MM1-1850HSM is available in a proprietary 4x4 mm package. Evaluation boards are available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| IF (GHz) | DC to 21 |
| LO Drive Min (dBm) | +12 to +22 |
| Conversion Loss (dB) | 8.7 |
| Isolations L-R (dB) | 39 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +17 |
| Product Type | MMIC/Microlithic Surface Mounts |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
