MP4361A
MP4361A
Keysight Technologies
Solar Array Simulator Auto-Ranging Module 0-160V, 0-10A, 1kW

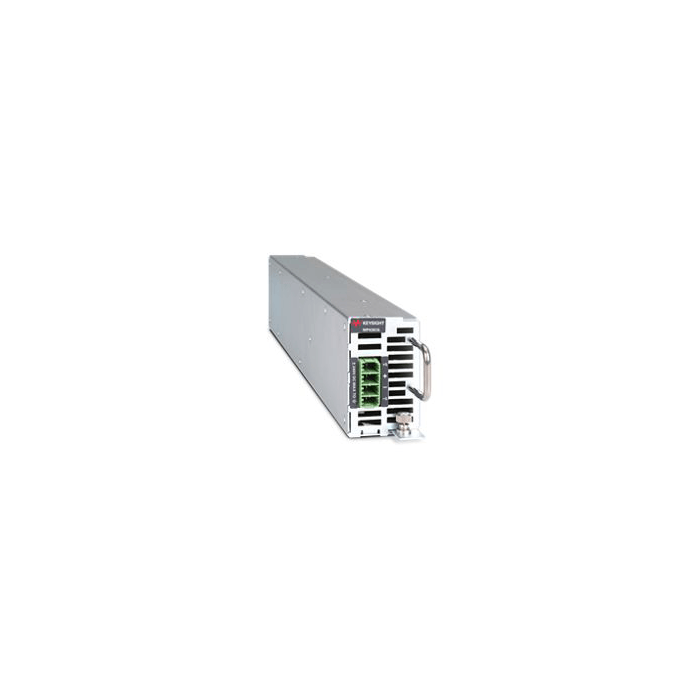

The Keysight MP4361A is a 0-160V, 0-10A, 1kW solar array simulator DC power module that simulates the output characteristics of a solar array.
Programming Accuracy at 23°C ±5°C
- Voltage (Fixed Mode): 0.05% + 25 mV
- Current (Fixed Mode): 0.1% + 7 mA
Output Voltage Ripple & Noise
- Voltage noise peak to peak: 500mV
- Voltage noise RMS: 50mV
Output current ripple & Noise (Simulator/Table mode)
- Current noise Peak to Peak: 48mA
- Current Noise RMS: 6mA
The Keysight MP4361A is a 1000 W solar array simulator DC power module that simulates the output characteristics of a solar array. The MP4361A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin, etc.).
- Can be used as a load.
- ** Source and sinking capabilities
- ** Can be used as a load.
- *** mention on the load application and application.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | SAS/2U |
| Key Features |
|
| Dimensions | 88.1 mm (3.5 in.) x 428.9 mm (16.89 in.) x 765.6 mm (30.14 in.) |
| Outputs | 1 |
| Connectivity | LXI, LAN, USB and GPIB (Option-GPB) |
| Maximum Voltage | 160 V |
| Maximum Current | 10A |
| Maximum Power | 1000 W |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
