MR8740T

MR8740T

Hioki

Memory HiCorder

Max. 108 Analog Channels, Reduce Inspection Data Transfer Time to Zero

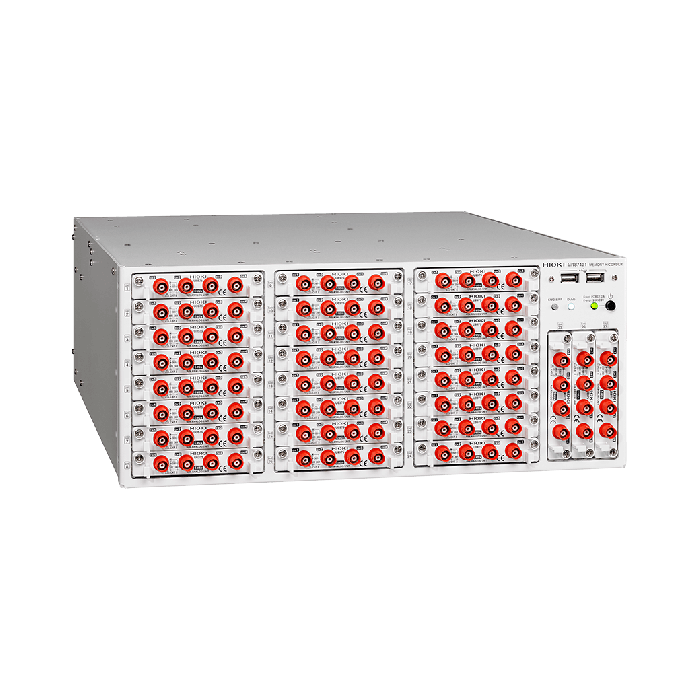

The MR8740T (MR8740-50) is rack-mountable data acquisition system that delivers high-speed, multi-channel measurements over maximum of 108 channels. Generate simulated signals and record at the same time using plug-and-play input units, making the waveform recorder ideal for evaluating multi-signal devices such as vehicle electronic control units (ECU).

Key Features

  • Ideal for multipoint inspection of high performance boards such as ECU
  • 108ch analogue to 96ch analogue + 48ch logic input
  • Reduce time required to save to external media to max.1/100 compared with conventional method
  • 20 MS/s simultaneous sampling on all channels
  • Safe measurement with all analogue inputs isolated
  • Supports 4K monitor to display multi-channel waveforms without overlapping
  • Measure 4 channels with 1 unit (4 ch analogue Unit U8975, 4 ch DVM Unit U8991)
  • Generate constant voltage, constant current, and simulated resistance (VIR Generator Unit U8794)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 to 240 V AC, 50/60 Hz (400 VA max.)
Dimensions and Weight 426 mm (16.77 in)W × 177 mm (6.97 in)H × 505 mm (19.88 in)D, 14.0 kg (493.8 oz) (main unit only)
Included Accessories Power cord ×1,Quick Start Manual (booklet) ×1, Instruction Manual (detailed edition) (CD-R) ×1, application disk (CD-R) ×1, blank panel (blank slot only), rack installation hardware
Number of Input Units Max. 27 slots
Number of Channels

[Using the U8975] Max. 108 ch analogue, or 96 ch analogue + 48 ch logic (when used in combination with U8975 + 8973)
[Using the 8966] Max. 54 ch analogue, or 48 ch analogue + 48 ch logic (when used in combination with 8966 + 8973)
*Logic unit 8973 is limited to slots 25 to 27, up to 3 units.
*Analog unit channels are isolated from each other and from chassis. Logic unit channels share a common GND with chassis.

Measurement Ranges

100 mV to 400 V f.s., 12 ranges, resolution: 1/2000 of range (when using 8966)
4 V to 200 V f.s., 6 ranges, resolution: 1/32000 of range (when using U8975)
100 mV to 1000 V f.s., 5 ranges, resolution: 1/1000 000 of range (when using MR8990)
1 V, 10 V, 100 V f.s., 3 ranges, resolution: 1/1000 000 of range (when using U8991)

Max Rated Voltage to Earth 300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
Frequency Characteristics DC to 5 MHz (-3 dB, when using 8966)
Max Sampling Speed 20 MS/s, all ch simultaneous, external sampling: 10 MS/s
Measurement Functions Memory (high-speed recording)
Memory Capacity Total of 1 G Word installed, 16 MW/ch (when using 8966), 8 MW/ch (when using U8975 or MR8990), 4 MW/ch (when using U8991)
Internal Storage SSD 480 GB
Removable Storage USB memory stick × 8
Monitor Output VGA, HDMI, Display Port, Recommended resolution 1920 × 1080 dot or more
External Interfaces [LAN] 1000 BASE-T, 100 BASE-TX, 10 BASE-TX (2 port) (DHCP and DNS support, FTP server/client, HTTP server) [USB] USB 3.0 Series A receptacle × 4, USB 2.0 ×4
More Information
Attribute Value
Data Sheet Click here to view
