Hioki MR8790 Waveform Generator Unit | APC Technology Group

MR8790

MR8790

Hioki

Waveform Generator Unit

Waveform Generator Input Module for Control Simulation Testing

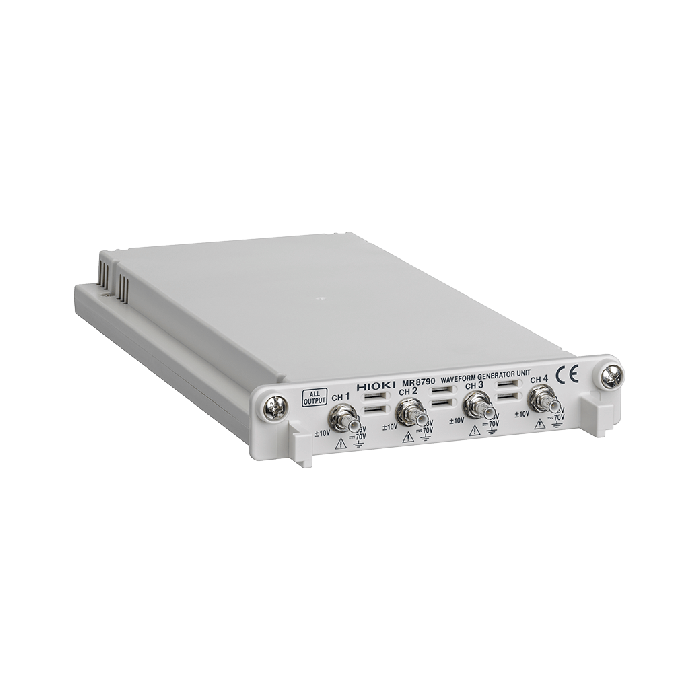

The Waveform Generator Unit MR8790 is a plug-and-play module for Hioki Memory HiCorders that offers high-precision DC voltage output for generating signals that simulate voltage fluctuations at very low levels.

Key Features

  • Output sine waves (20 kHz max.) and DC voltage signals up to 4 channels per unit
  • Output signals up ±10V or 5mA
  • For limited models only (Cannot be used for 8847, MR8847-01, MR8847-02, MR8847-03)
  • Isolated between unit and output, and between all channels
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Output Voltage Range -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV)
Dimensions and Weight 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)
Accuracy

Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz)
Offset accuracy: ±3 mV
DC output accuracy: ±0.6 mV

Output Terminal

Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less)
Max. rated voltage to ground: 30 V rms AC or 60 V DC

Output Mode DC, Sine wave (Output frequency range: 1 Hz to 20 kHz)
Max. Output Current 5 mA
Other Self-test function (Voltage, Current)
More Information
Attribute Value
Data Sheet Click here to view
