Hioki MR8791 Pulse Generator Unit | APC Technology Group

MR8791

MR8791

Hioki

Pulse Generator Unit

Pulse Generator Input Module for Control Simulation Testing

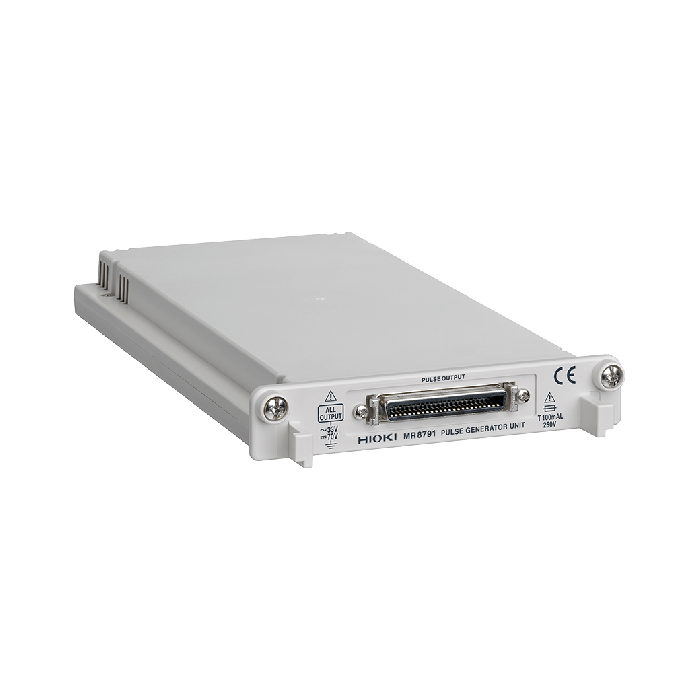

The Pulse Generator Unit MR8791 is a plug-and-play module for Hioki Memory HiCorders to conduct control simulation testing of control boards on equipment such as engine, airbags, brake systems, and power steering.

Key Features

  • Output pulse waves, pattern waves up to 8 channels per unit (output signals of TTL level, or open-collector)
  • For limited models only (Cannot be used for 8847, MR8847-01, MR8847-02, MR8847-03)
  • Isolated between unit and output (Not isolated between each channel [common ground])
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Dimensions and Weight 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)
Output Terminal

Number of channels: 8, Connector: D-sub, half-pitch, 50-pin
Max. rated voltage to ground: 30 V rms AC or 60 V DC (between unit and output channels)
Logic output/Open collector output

Output Mode

Output Mode 1
Pattern output: Read frequency: 10 Hz to 120 kHz, 2048 logic patterns
Pulse output: Frequency 0.1 Hz to 20 kHz, Duty 0.1% to 99.9%

Output Mode 2
Logic output: Output voltage level: 0 V to 5 V
(H level: 3.8 V or more, L level: 0.8 V or less)
Open collector output: Absolute maximum rated voltage for collector/emitter: 50 V
Overcurrent protection: 100 mA

Other Self-test function
More Information
Attribute Value
