Hioki

Input Module for MR8875

This product is available in 5-7 weeks

Input Module for MR8875

Key Features

  • Channels: 4, voltage measurement
  • Input Connectors: Isolated BNC (input resistance 1 MΩ, input capacitance 10 pF)
  • Sampling Rate: 500 kS/s
  • Measurement Range: 5 mV to 10 V/div
  • Low-pass Filter: 5/50/500 Hz, 5 kHz
  • Resolution: 1/1250 of measurement range (16-bit A/D converter)
  • Accuracy: ±0.5% of full scale
  • Frequency Characteristics: DC to 100 kHz (-3 dB)
  • Input Coupling: DC/GND
  • Max Allowable Input: 150 V DC
  • Dimensions: 119.5 mm (W) × 18.8 mm (H) × 151.5 mm (D)
  • Weight: 180 g (6.3 oz)

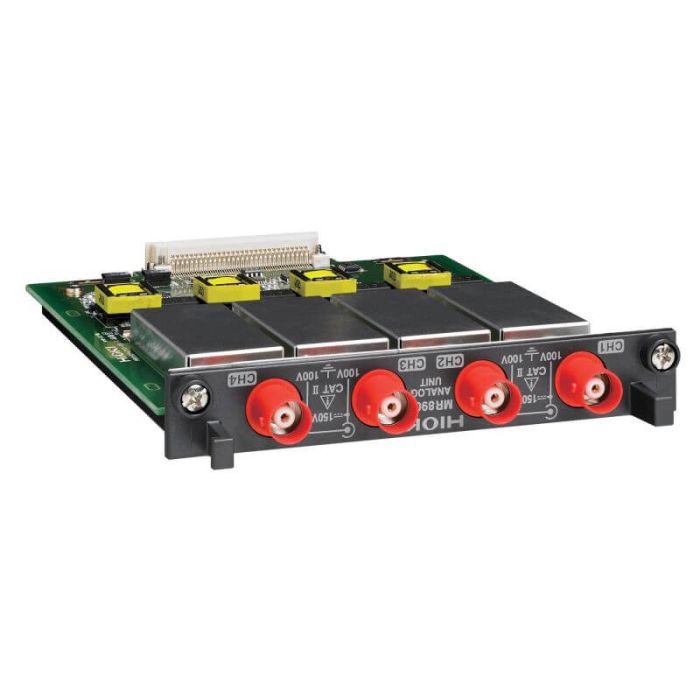

The Hioki MR8901 is a 4-channel analogue input module designed for use with Hioki Memory Recorders. It allows precise voltage measurement across a wide range of frequencies, making it ideal for capturing fast transients and DC signals. With a maximum sampling rate of 500 kS/s and an integrated 16-bit A/D converter, it ensures high-resolution data acquisition.

In stock
£1,381.36
More Information
Attribute Value
Data Sheet Click here to view
